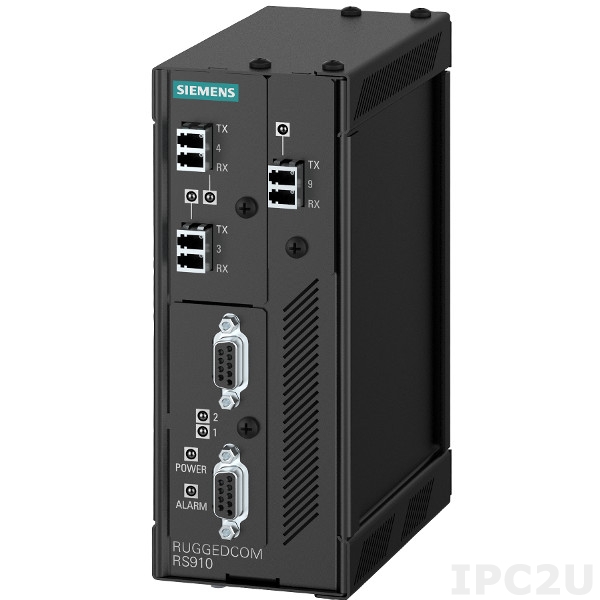

RUGGEDCOM-RS910-M
Siemens AG
SKU: 56130700
RUGGEDCOM-RS910 Industrial Managed Serial Device Server up to 2x RS232/422/485 DB9 or Fiber-serial ports, up to 3x 10/100Base-X RJ45 or fiber ports (ST, MTRJ, LC, SC), 128-bit Encryption, 24V or 48V DC-in or 87-264 VAC/ 88-300VDC, Wide Temp. -40..85C
Price on request
Available
Available
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Type 10/100 Mbit/s
2xRJ-45
Interfaces
COM Total
2
RS-232/422/485
2
Digital Output
Total channels of digital output
1
Contact rating of relay (Form C)
1A@30V DC
Relay (Form C)
1
Supported Protocols
Industrial Protocols
Modbus TCP, DNP3
Managment Protocols
SNMPv1/v2c/v3, HTTP, SNTP, GVRP, RMON, TFTP
Security Protocols
RADIUS, SSL, TACACS+, PPP
System Power Input
Input Voltage DC
18..36 V
Operating Conditions
Operating Temperature
-40..85 °C
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP40
Dimensions and weight
Width
66 mm
Depth
127 mm
Height
188 mm
Standards and Certifications
Certifications
CE
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
EN 61000-6-2, EN 61000-6-4
Explosion safety
UL/cUL Class I Division 2
Power Automation
IEC 61850-3, IEEE 1613
Safety
UL 60950-1, CSA
Automotive
NEMA TS2
Dimensions
Net Weight
0.92 kg
Gross Weight
1.3 kg
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Type 10/100 Mbit/s
2xRJ-45
Interfaces
COM Total
2
RS-232/422/485
2
Digital Output
Total channels of digital output
1
Contact rating of relay (Form C)
1A@30V DC
Relay (Form C)
1
Supported Protocols
Industrial Protocols
Modbus TCP, DNP3
Managment Protocols
SNMPv1/v2c/v3, HTTP, SNTP, GVRP, RMON, TFTP
Security Protocols
RADIUS, SSL, TACACS+, PPP
System Power Input
Input Voltage DC
18..36 V
Operating Conditions
Operating Temperature
-40..85 °C
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP40
Dimensions and weight
Width
66 mm
Depth
127 mm
Height
188 mm
Standards and Certifications
Certifications
CE
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
EN 61000-6-2, EN 61000-6-4
Explosion safety
UL/cUL Class I Division 2
Power Automation
IEC 61850-3, IEEE 1613
Safety
UL 60950-1, CSA
Automotive
NEMA TS2
Dimensions
Net Weight
0.92 kg
Gross Weight
1.3 kg
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Type 10/100 Mbit/s
2xRJ-45
Interfaces
COM Total
2
RS-232/422/485
2
Digital Output
Total channels of digital output
1
Contact rating of relay (Form C)
1A@30V DC
Relay (Form C)
1
Supported Protocols
Industrial Protocols
Modbus TCP, DNP3
Managment Protocols
SNMPv1/v2c/v3, HTTP, SNTP, GVRP, RMON, TFTP
Security Protocols
RADIUS, SSL, TACACS+, PPP
System Power Input
Input Voltage DC
18..36 V
Operating Conditions
Operating Temperature
-40..85 °C
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP40
Dimensions and weight
Width
66 mm
Depth
127 mm
Height
188 mm
Standards and Certifications
Certifications
CE
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
EN 61000-6-2, EN 61000-6-4
Explosion safety
UL/cUL Class I Division 2
Power Automation
IEC 61850-3, IEEE 1613
Safety
UL 60950-1, CSA
Automotive
NEMA TS2
Dimensions
Net Weight
0.92 kg
Gross Weight
1.3 kg
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Type 10/100 Mbit/s
2xRJ-45
Interfaces
COM Total
2
RS-232/422/485
2
Digital Output
Total channels of digital output
1
Contact rating of relay (Form C)
1A@30V DC
Relay (Form C)
1
Supported Protocols
Industrial Protocols
Modbus TCP, DNP3
Managment Protocols
SNMPv1/v2c/v3, HTTP, SNTP, GVRP, RMON, TFTP
Security Protocols
RADIUS, SSL, TACACS+, PPP
System Power Input
Input Voltage DC
18..36 V
Operating Conditions
Operating Temperature
-40..85 °C
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP40
Dimensions and weight
Width
66 mm
Depth
127 mm
Height
188 mm
Standards and Certifications
Certifications
CE
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
EN 61000-6-2, EN 61000-6-4
Explosion safety
UL/cUL Class I Division 2
Power Automation
IEC 61850-3, IEEE 1613
Safety
UL 60950-1, CSA
Automotive
NEMA TS2
Dimensions
Net Weight
0.92 kg
Gross Weight
1.3 kg
