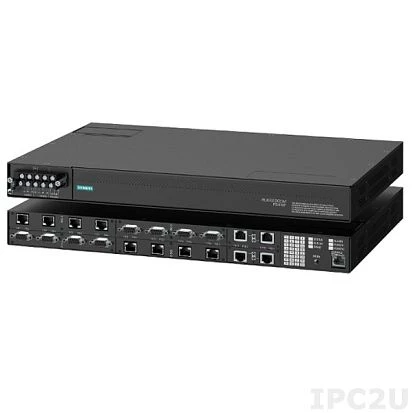

RUGGEDCOM-RS416P
Siemens AG
SKU: 56130600
Industrial Serial Device Server with 2x 10/100BASE-TX RJ-45 PoE ports, 8x RS232/422/485 DB9 ports, 24VDC Input Power, -40..85C Operating Temperature
End-of-life product
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Type 10/100 Mbit/s
2xRJ-45
Interfaces
COM Total
8
RS-232/422/485
8
Digital Output
Total channels of digital output
1
Contact rating of relay (Form C)
1A@30V DC
Relay (Form C)
1
Supported Protocols
Industrial Protocols
Modbus TCP, DNP3
Managment Protocols
SNMPv1/v2c/v3, HTTP, SNTP, GVRP, RMON, TFTP
Security Protocols
RADIUS, SSL, TACACS+, PPP
System Power Input
Input Voltage DC
18..36 V
Operating Conditions
Operating Temperature
-40..85 °C
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
19" Rackmount
Protection Level of Chassis
IP40
Dimensions and weight
Width
466.7 mm
Depth
315 mm
Height
44 mm
Standards and Certifications
Certifications
CE
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
EN 61000-6-2, EN 61000-6-4
Explosion safety
UL/cUL Class I Division 2
Power Automation
IEC 61850-3, IEEE 1613
Safety
UL 60950-1, CSA
Automotive
NEMA TS2
Dimensions
Net Weight
5.2 kg
Gross Weight
5.7 kg
