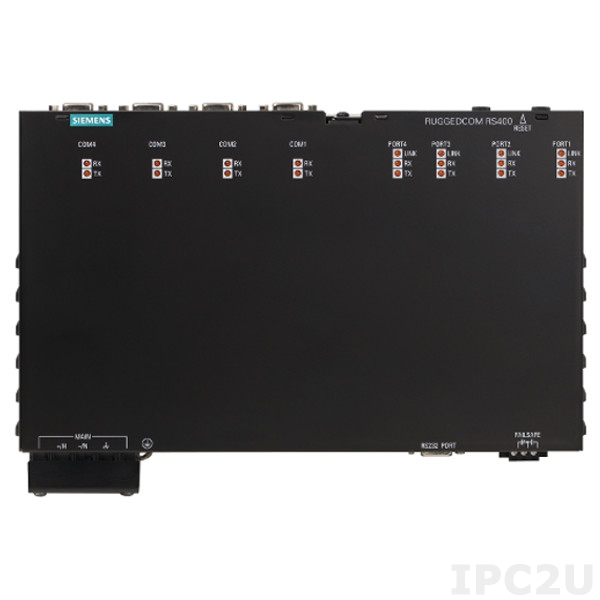

RUGGEDCOM-RS400
Siemens AG
SKU: 57392900
RUGGEDCOM RS400 Rackmount Managed Layer 2 Ethernet Switch, IP40, up to 4x10/100Base-X, Optional up to 4x RS485/RS422/RS232 DB9 or RJ45 or Terminal Connector, Optional 24 VDC, 48 VDC or HI Power, Wide Temp. -40..85C
Price on request
Available
Available
Ethernet
10/100 Mbit/s
4
Typical Distance
90 km
Interfaces
RS-232/422/485
4
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, SNTP, GVRP, RMON, TFTP, TCP
Reservation protocols
RSTP
Security Protocols
RADIUS, SSL, TACACS+
IEEE Standard
IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Switch Properties
MAC Table Size
16000
System Power Input
Input Voltage DC
88..300 V
Input Voltage AC
85..265 V
Operating Conditions
Operating Temperature
-40..85 °C
Humidity
5-95%
Construction
Protection Level of Chassis
IP40
Dimensions and weight
Width
202 mm
Depth
44 mm
Height
291 mm
Dimensions
Net Weight
1.7 kg
Gross Weight
2 kg
Ethernet
10/100 Mbit/s
4
Typical Distance
90 km
Interfaces
RS-232/422/485
4
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, SNTP, GVRP, RMON, TFTP, TCP
Reservation protocols
RSTP
Security Protocols
RADIUS, SSL, TACACS+
IEEE Standard
IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Switch Properties
MAC Table Size
16000
System Power Input
Input Voltage DC
88..300 V
Input Voltage AC
85..265 V
Operating Conditions
Operating Temperature
-40..85 °C
Humidity
5-95%
Construction
Protection Level of Chassis
IP40
Dimensions and weight
Width
202 mm
Depth
44 mm
Height
291 mm
Dimensions
Net Weight
1.7 kg
Gross Weight
2 kg
