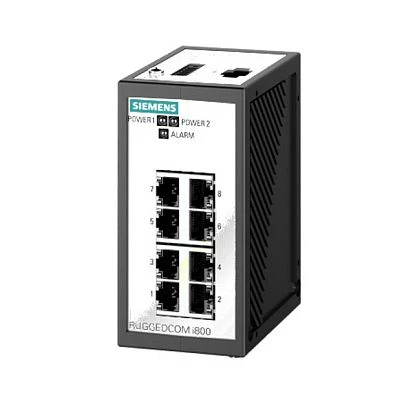

RUGGEDCOM-i800
Siemens AG
SKU: 56645200
RUGGEDCOM i800 Industrial Managed Layer 2 Ethernet Switch, IP4X, 8x10/100Base-TX ports, 1xCOM, 56-bit Encryption, 9..32 VDC, Wide Temp. -20..60C
Price on request
Available
Available
Ethernet
Total Ethernet
8
10/100 Mbit/s
8
Switch Properties
Switch Level
Layer 2
Supported Protocols
Industrial Protocols
Modbus TCP
Managment Protocols
SNMPv1/v2c/v3, HTTP, VLAN, RMON, TFTP, DHCP Client, Private MIB
Reservation protocols
MSTP, STP, RSTP
Security Protocols
HTTPS, RADIUS, SSL, TACACS+, PPTP
IEEE Standard
IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
System Power Input
Input Voltage DC
10..36 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP40
Dimensions and weight
Width
114 mm
Depth
89 mm
Height
51 mm
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions
Net Weight
0.4 kg
Gross Weight
0.8 kg
