RS752
WoMaster
SKU: 57638300

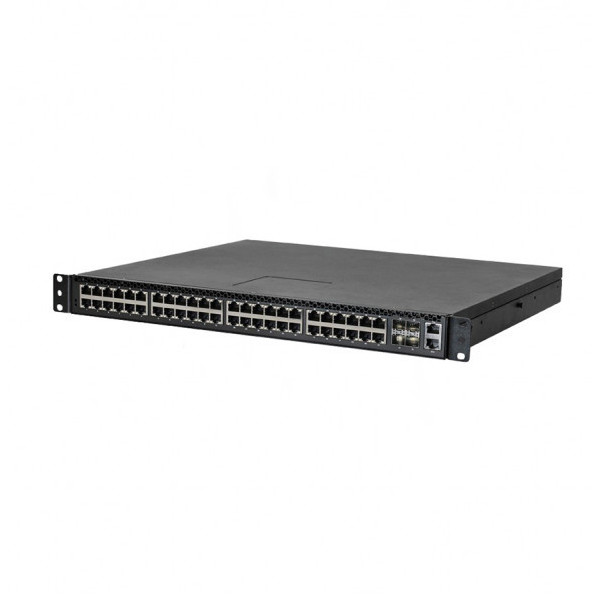

Industrial Rackmount Ethernet Switch, 48x10/100/1000Base-T, 2x1/10G SFP+, 1xDB9, L3 Managed, L2 Managed, VRRP v2, ERPS v2, 100..240VAC, -10..55 C
Price on request
Available
Available
Ethernet
10/100/1000 Mbit/s
48
Interfaces
RS-232
1
Switch Properties
MAC Table Size
32000
Packet Buffer Size
4 kBit
Jumbo Frame Size
12 kB
Max. Number of VLANs
4000
Supported Protocols
Protocol Layer 3
VRRP, RIP V1/V2, OSPF, DVMRP
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3u for 100BaseT(X)
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Height
1 U
Dimensions and weight
Width
435 mm
Depth
393 mm
Height
42.8 mm
Standards and Certifications
EMI
EN 55022
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 55024
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
7.15 kg
Gross Weight
9.4 kg
Ethernet
10/100/1000 Mbit/s
48
Interfaces
RS-232
1
Switch Properties
MAC Table Size
32000
Packet Buffer Size
4 kBit
Jumbo Frame Size
12 kB
Max. Number of VLANs
4000
Supported Protocols
Protocol Layer 3
VRRP, RIP V1/V2, OSPF, DVMRP
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3u for 100BaseT(X)
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Height
1 U
Dimensions and weight
Width
435 mm
Depth
393 mm
Height
42.8 mm
Standards and Certifications
EMI
EN 55022
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 55024
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
7.15 kg
Gross Weight
9.4 kg
Ethernet
10/100/1000 Mbit/s
48
Interfaces
RS-232
1
Switch Properties
MAC Table Size
32000
Packet Buffer Size
4 kBit
Jumbo Frame Size
12 kB
Max. Number of VLANs
4000
Supported Protocols
Protocol Layer 3
VRRP, RIP V1/V2, OSPF, DVMRP
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3u for 100BaseT(X)
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Height
1 U
Dimensions and weight
Width
435 mm
Depth
393 mm
Height
42.8 mm
Standards and Certifications
EMI
EN 55022
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 55024
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
7.15 kg
Gross Weight
9.4 kg
Ethernet
10/100/1000 Mbit/s
48
Interfaces
RS-232
1
Switch Properties
MAC Table Size
32000
Packet Buffer Size
4 kBit
Jumbo Frame Size
12 kB
Max. Number of VLANs
4000
Supported Protocols
Protocol Layer 3
VRRP, RIP V1/V2, OSPF, DVMRP
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3u for 100BaseT(X)
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Height
1 U
Dimensions and weight
Width
435 mm
Depth
393 mm
Height
42.8 mm
Standards and Certifications
EMI
EN 55022
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 55024
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
7.15 kg
Gross Weight
9.4 kg
Documentation
Documentation
Documentation
Documentation
Get a Quote
