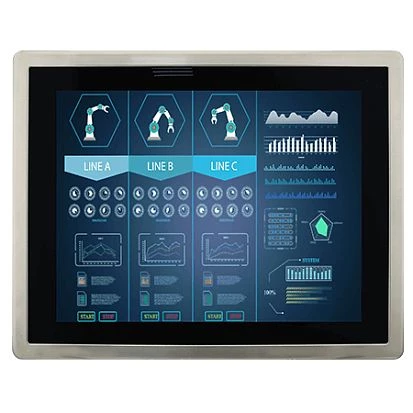

R15L600-65EX

R15L600-65EX

Winmate
SKU: 07615700

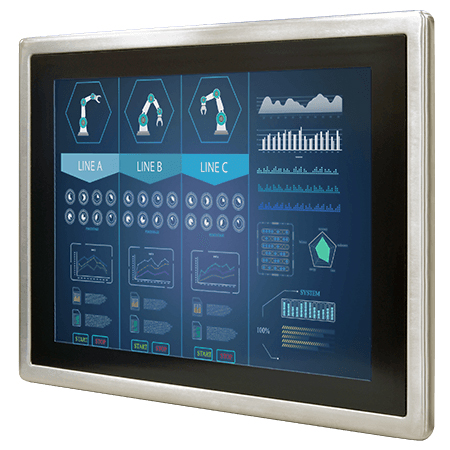

15" TFT LCD Monitor, 1024x768, 550cd/m2, ELO 5 Wire resistive touch USB, VGA Input, 9...36VDC-in, IP65, stainless steel
Price on request
Available
Available

Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Material Front Side (Panel)
Heavy-Duty Steel
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Brightness
550 Cd/m2
Contrast Ratio
2000~1
Input Interface
VGA
Touch Screen
Touch Screen Type
Resistive
Interface
USB
LED / Controls
LED
Power LED
Controls
On/Off, KeyPad
Connectors
Connectors
M12 USB, M12 DC-in, M12 VGA
System Power Input
Input Voltage DC
9..36 V
Power Supply
Type of Power Supply
Industrial, External power adapter AC/DC
Operating Conditions
Operating Temperature
-20..50 °C
Vibration
MIL­-STD­-810G Method 514.6
Shock
MIL-­STD­-810G Method 516.6
Dimensions and weight
Width
396 mm
Height
310 mm
Depth
49 mm
Standards and Certifications
Certifications
CE, FCC
Explosion safety
ANSI C1D2 12.12.01
Oil And Gas
ATEX Zone 2 Ex nC IIC, UL/cUL Class I Division 2 Groups A/B/C/D
Safety
UL 60950-1, EN 60950-1
Dimensions
Net Weight
7 kg
Gross Weight
10 kg
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Material Front Side (Panel)
Heavy-Duty Steel
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Brightness
550 Cd/m2
Contrast Ratio
2000~1
Input Interface
VGA
Touch Screen
Touch Screen Type
Resistive
Interface
USB
LED / Controls
LED
Power LED
Controls
On/Off, KeyPad
Connectors
Connectors
M12 USB, M12 DC-in, M12 VGA
System Power Input
Input Voltage DC
9..36 V
Power Supply
Type of Power Supply
Industrial, External power adapter AC/DC
Operating Conditions
Operating Temperature
-20..50 °C
Vibration
MIL­-STD­-810G Method 514.6
Shock
MIL-­STD­-810G Method 516.6
Dimensions and weight
Width
396 mm
Height
310 mm
Depth
49 mm
Standards and Certifications
Certifications
CE, FCC
Explosion safety
ANSI C1D2 12.12.01
Oil And Gas
ATEX Zone 2 Ex nC IIC, UL/cUL Class I Division 2 Groups A/B/C/D
Safety
UL 60950-1, EN 60950-1
Dimensions
Net Weight
7 kg
Gross Weight
10 kg
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Material Front Side (Panel)
Heavy-Duty Steel
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Brightness
550 Cd/m2
Contrast Ratio
2000~1
Input Interface
VGA
Touch Screen
Touch Screen Type
Resistive
Interface
USB
LED / Controls
LED
Power LED
Controls
On/Off, KeyPad
Connectors
Connectors
M12 USB, M12 DC-in, M12 VGA
System Power Input
Input Voltage DC
9..36 V
Power Supply
Type of Power Supply
Industrial, External power adapter AC/DC
Operating Conditions
Operating Temperature
-20..50 °C
Vibration
MIL­-STD­-810G Method 514.6
Shock
MIL-­STD­-810G Method 516.6
Dimensions and weight
Width
396 mm
Height
310 mm
Depth
49 mm
Standards and Certifications
Certifications
CE, FCC
Explosion safety
ANSI C1D2 12.12.01
Oil And Gas
ATEX Zone 2 Ex nC IIC, UL/cUL Class I Division 2 Groups A/B/C/D
Safety
UL 60950-1, EN 60950-1
Dimensions
Net Weight
7 kg
Gross Weight
10 kg
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Material Front Side (Panel)
Heavy-Duty Steel
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Brightness
550 Cd/m2
Contrast Ratio
2000~1
Input Interface
VGA
Touch Screen
Touch Screen Type
Resistive
Interface
USB
LED / Controls
LED
Power LED
Controls
On/Off, KeyPad
Connectors
Connectors
M12 USB, M12 DC-in, M12 VGA
System Power Input
Input Voltage DC
9..36 V
Power Supply
Type of Power Supply
Industrial, External power adapter AC/DC
Operating Conditions
Operating Temperature
-20..50 °C
Vibration
MIL­-STD­-810G Method 514.6
Shock
MIL-­STD­-810G Method 516.6
Dimensions and weight
Width
396 mm
Height
310 mm
Depth
49 mm
Standards and Certifications
Certifications
CE, FCC
Explosion safety
ANSI C1D2 12.12.01
Oil And Gas
ATEX Zone 2 Ex nC IIC, UL/cUL Class I Division 2 Groups A/B/C/D
Safety
UL 60950-1, EN 60950-1
Dimensions
Net Weight
7 kg
Gross Weight
10 kg

Documentation
Datasheet R15L600-65EX
Documentation
Datasheet R15L600-65EX
Documentation
Datasheet R15L600-65EX
Documentation
Datasheet R15L600-65EX
