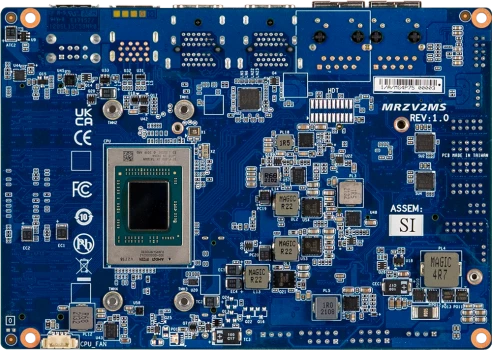

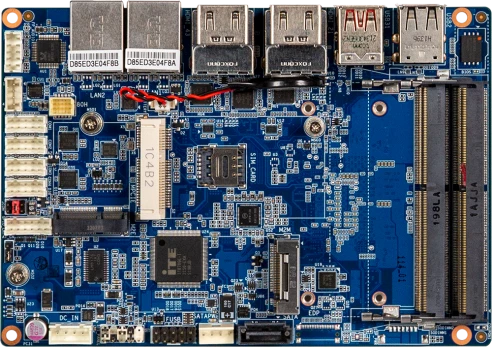

3.5" Embedded SBC, AMD Ryzen V2718 1.7GHz SoC, Up to 64GB DDR4 RAM, 4xHDMI, 2xGbE LAN, 1xSATA, 4xCOM headers, 2xUSB 3.2, 2xUSB 2.0, 2xUSB 2.0 headers, 2xM.2, 1xMiniPCIe, SIM, 1x8-bit GPIO, Audio, 9-48VDC-in, 0..+60C
QBiP-2718A
GIGAIPC
SKU: 57833900
Price on request
Available on order
Available on order
System Architecture
Form Factor
3.5" Half-Size SBC
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Ryzen V2718
Socket
CPU onboard
Max CPU frequency
4.15 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, AMD Radeon Graphics Vega
Interfaces
4xHDMI
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232/422/485
4
USB Total
6
USB 2.0
4
USB v3.x
2
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Intel HD Audio
Drive interfaces
SATA 3
1
M.2
1
Extension Slots
Total
3
SIM Card slots
Yes, 1
M.2
2
M.2 Form Factor
2280 M, 2230 E
Mini-PCIe/Mini Card
1
Connectors
Connectors
4-pin ATX, 2xRJ45 Ethernet, 4xUSB, 4xHDMI
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
146 mm
Length
101.7 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
0-95%
Dimensions
Net Weight
0.38 kg
Gross Weight
0.5 kg
