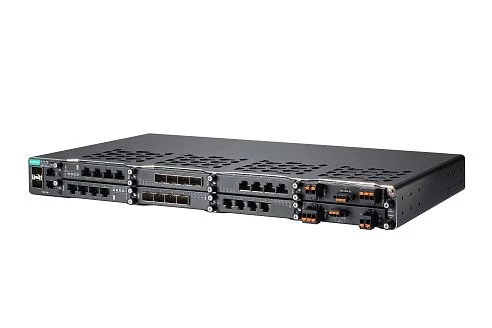

PT-G7728
MOXA
SKU: 07646700
IEC 61850-3 Managed Rackmount Ethernet Switch with up to 28 Gigabit ports, including 4 fixed ports, 6 media module slots and 2 power module slots.
Price on request
Available
Available
Ethernet
Total Ethernet
28
10/100/1000 Mbit/s
28
Type 10/100/1000 Mbit/s
2xRJ-45
SFP 100/1000 Mbit/s Ports
2
Power Budget
720 W
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported technologies
RSTP Grouping, Video Always-On (V-ON), NoiseGuard, IEC 61850 QoS, Smart PoE
Supported functions
Port Mirror, MAC sticky, Port Lock, Rate Limit, Loop Protection, Broadcast Storm Protection, Link Aggregation, Port-Based VLAN, DDM/Fiber Check, Automatic power failure notification, Automatic port failure notification, Dying Gasp, Flow Control, Back pressure flow control, Access Control Lists, MAC Authentication Bypass, MAB Authentication, NTP Authentication, Security features based on IEC 62443, Supports network management system
MAC Table Size
16000
Packet Buffer Size
12 kBit
Jumbo Frame Size
9.6 kB
Max. Number of VLANs
512
Priority Queues
8
IGMP Groups
4096
Supported Protocols
Industrial Protocols
EtherNet/IP, Modbus TCP
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, QoS, SNTP, GVRP, RMON, TFTP, BootP, IEEE 1588 PTP V2 (hardware-based), IGMPv1/v2/v3, DHCP Option 66/67/82, NTP Server/Client, SNMP Inform, GMRP, RARP, MMS
Reservation protocols
MSTP, STP, Turbo Ring, Turbo Chain, MRP, RSTP
Security Protocols
HTTPS, SSH, RADIUS, SSL, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
2A@30V DC, 0.5А@125V DC
Expansion Module
Quantity of Slots
6
Supported Module
LM-7000H series, PWR-HV/LV-P48
LED / Controls
Setup of Operation Mode
Telnet, Console Port, Web-interface, Command Line Interface (CLI), Through MXconfig Utility
Connectors
Connectors
USB type A, Console Port Micro USB
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Protection Level of Chassis
IP30
Height
1 U
Dimensions and weight
Width
443 mm
Depth
280 mm
Height
44 mm
Operating Conditions
Operating Temperature
-40..85 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
Power Automation
IEC 61850-3, IEEE 1613
Rolling Stock
EN 50121-4
Safety
UL 61010-2-201
Dimensions
Net Weight
4.8 kg
Gross Weight
4.8 kg
