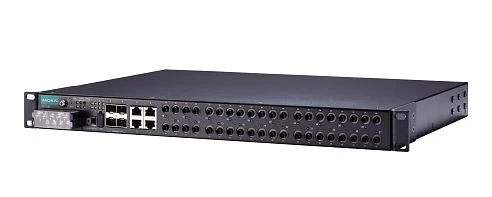

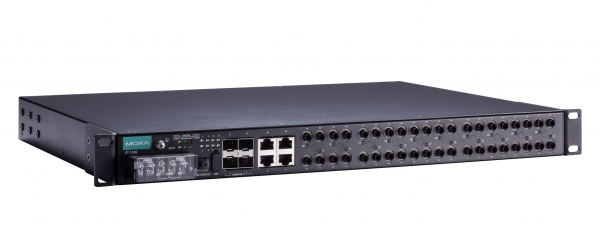

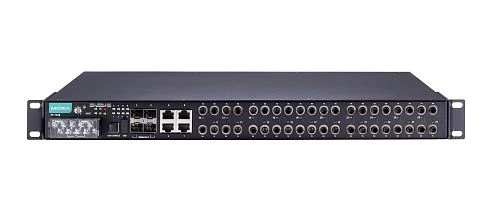

PT-7528-8MSC-16TX-4GSFP-WV
MOXA
SKU: 66394400
IEC 61850-3 Managed Rackmount Ethernet Switch with 8x 10/100BaseF(X) ports(MSC), 16x 10/100/BaseT(X), 4x 1000BaseSFP ports, for a total of up to 28 ports, 1x isolated power supply (18 ~ 72 VDC), -40 to 85C operating temperature
Price on request
Available on order
Available on order
Ethernet
Total Ethernet
28
10/100 Mbit/s
24
Type 10/100 Mbit/s
16xRJ-45, 8xSC
SFP 100/1000 Mbit Ports
4
Fiber
Number of Optical Ports
8xSC
Type of Fibre Optic
multi-mode
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported Protocols
Industrial Protocols
EtherNet/IP, Modbus TCP
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, SNTP, GVRP, RMON, TFTP, BootP, IEEE 1588 PTP V2 (software based), IGMPv1/v2, DHCP Option 66/67/82, NTP Server/Client, SNMP Inform, GMRP, RARP
Security Protocols
HTTPS, SSH
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
3A@250V AC, 3A@30V DC
Expansion Module
Quantity of Slots
1
Supported Module
PM-7500 series
LED / Controls
Setup of Operation Mode
Telnet, Console Port, Web-interface
Connectors
Connectors
1xUSB, Console Port USB
System Power Input
Input Voltage DC
18..72 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Protection Level of Chassis
IP40
Height
1 U
Dimensions and weight
Width
440 mm
Depth
325 mm
Height
44 mm
Operating Conditions
Operating Temperature
-40..85 °C
Standards and Certifications
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
Power Automation
IEC 61850-3, IEEE 1613
Rolling Stock
EN 50121-4
Automotive
NEMA TS2
Safety
UL 508
Dimensions
Gross Weight
5.5 kg
