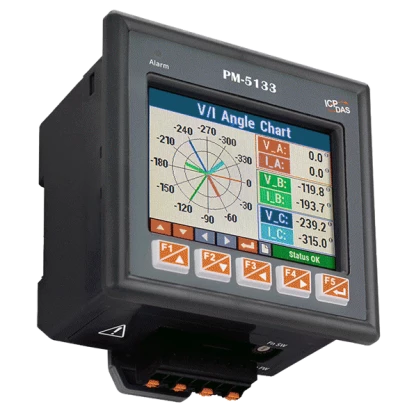

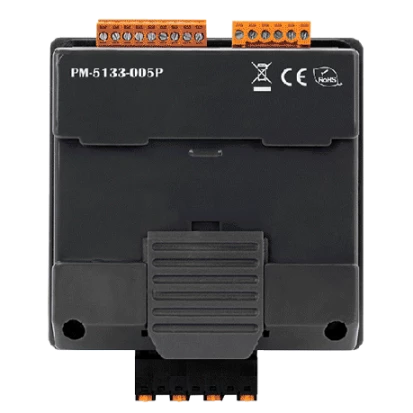

PM-5133-005P
ICP DAS
SKU: 11667600

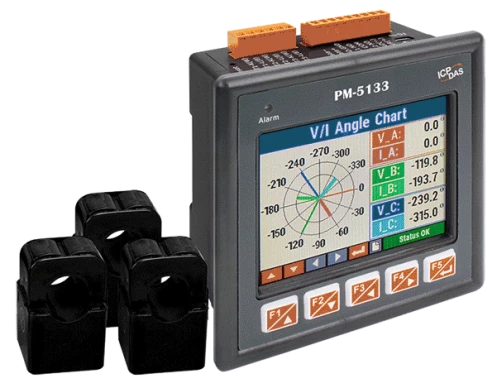

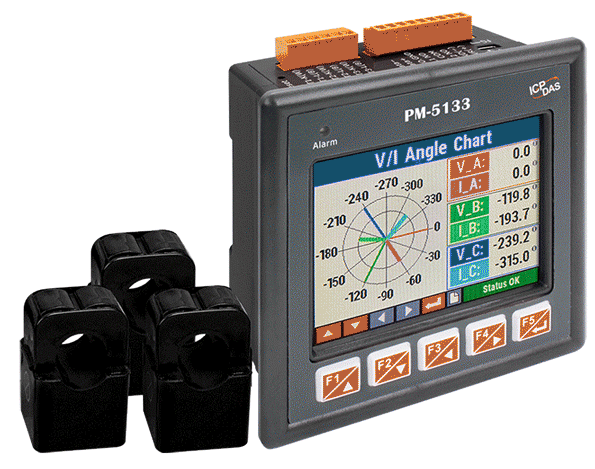

3.5" 240x320 Touch LCD screen, Modbus RTU, 3-phase power meter, 2x relay putput 5A@250VAC/5A@30VDC, includes 5A CT (Inside diameter 10 mm, wire lead 4 m) x 3 (RoHS)
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Panel
Protection Level of Front Side (Panel)
IP65
Display
Display Type
LCD TFT
Diagonal
3.5 "
Maximum resolution
240x320 Dots
Supported Protocols
Industrial Protocols
Modbus RTU
System Power Input
Input Voltage DC
12..48 V

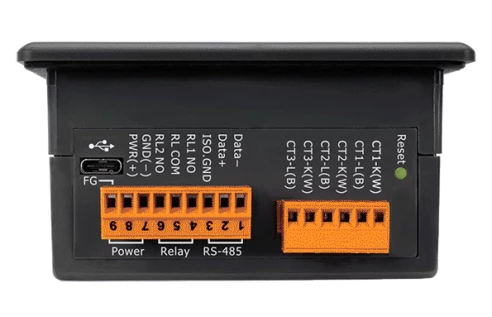

Interfaces
COM Total
1
RS-485
1
USB Total
1
AC Power Measurement
Frequency
50/60Hz
Input Voltage
10...500V AC
Voltage measurement channels
1 (three-phase)
Input Current
5A
CT Type
Split-core CT
Power Parameter Measurement
True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency
Digital Output
Total channels of digital output
2
Type
Electromagnitic relay
Operating Conditions
Operating Temperature
-20..50 °C
Humidity
10-90%
Dimensions and weight
Width
119 mm
Depth
54 mm
Height
115 mm
Dimensions
Net Weight
0.4 kg
Gross Weight
0.5 kg
