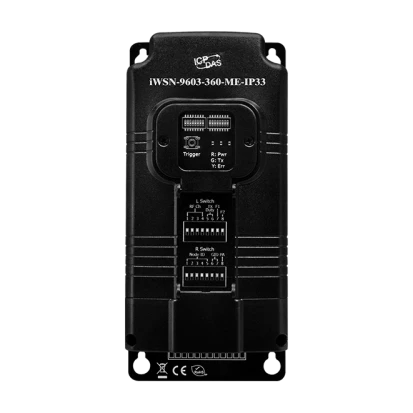

iWSN-9603-360-ME-IP33
ICP DAS
SKU: 10094200

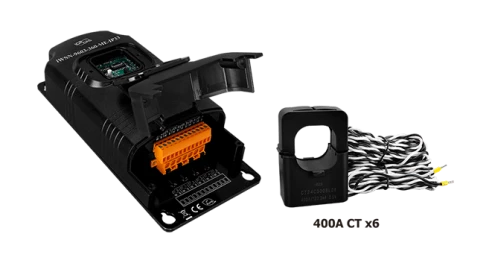

iWSN Wireless 3-phase 2-loop intelligent AC power meter, 100-277VAC, Provides 6 400A split current transformers (CT)
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Wall
Protection Level of Chassis
ip33
RF Interface
Frequency
433 MHz
AC Power Measurement
Frequency
50/60Hz
Input Voltage
100…277V AC
Voltage measurement channels
1 (three-phase)
Input Current
400А
Current measurement channels
2
CT Type
Split-core CT
Power Parameter Measurement
True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Power Factor (PF), Frequency
Operating Conditions
Operating Temperature
-30..50 °C
Humidity
10-90%
Dimensions and weight
Width
184 mm
Depth
47 mm
Height
85 mm
Dimensions
Net Weight
0.2 kg
Gross Weight
0.35 kg
