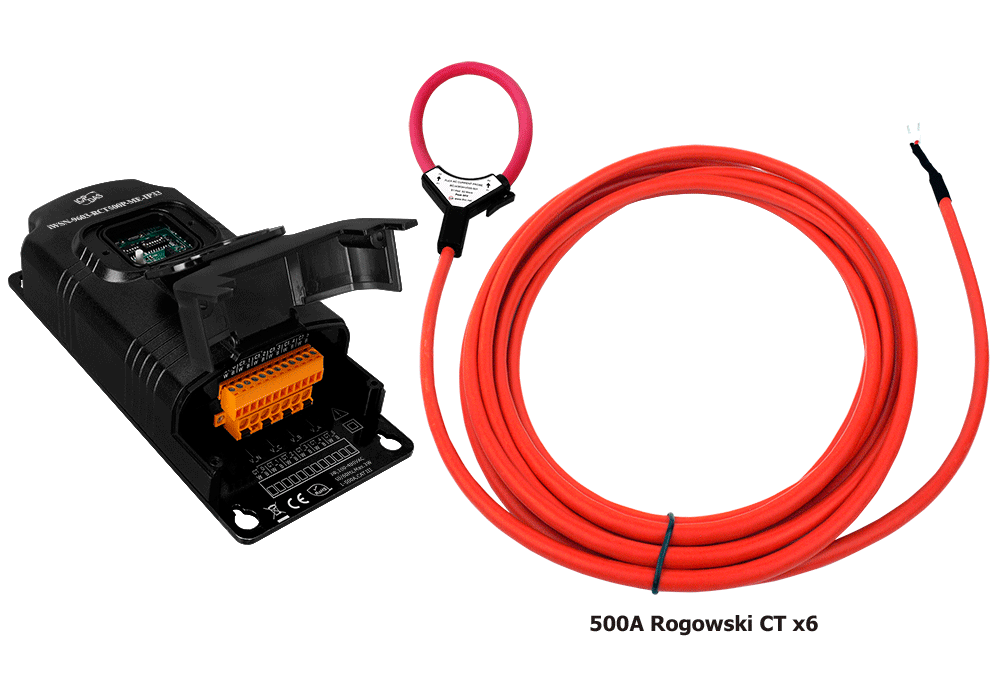

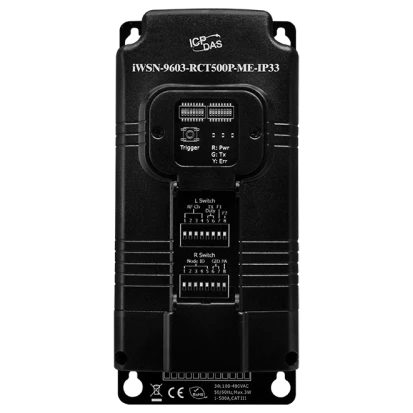

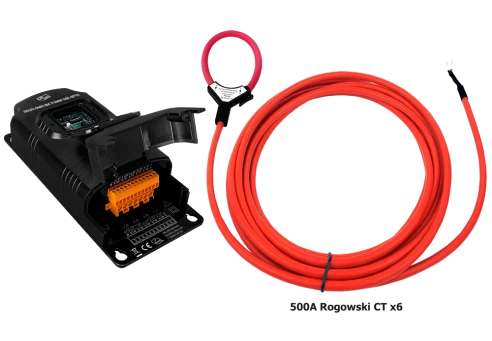

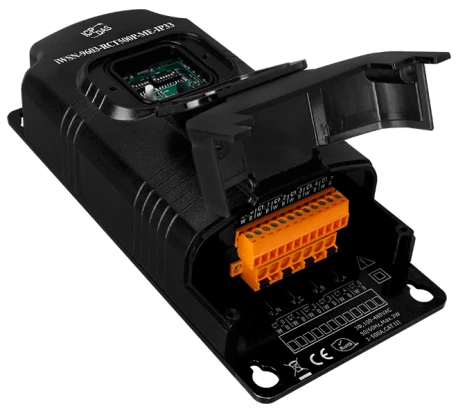

iWSN-9603-RCT500P-ME-IP33
ICP DAS
SKU: 11006400
iWSN Wireless 3-phase 2-loop intelligent AC power meter, 100-480VAC, Supports split current transformer (CT)
Price on request
Available
Available
Construction
Mounting Configuration
Wall
Protection Level of Chassis
ip33
System Power Input
Input Voltage AC
100..480 V
RF Interface
Radio Standard
802.15.4e
Frequency
433 MHz
AC Power Measurement
Frequency
50/60Hz
Input Voltage
100-480\three_phase
Voltage measurement channels
1 (three-phase)
Input Current
500A
Current measurement channels
6
CT Type
Rogowski Coil CT
Power Parameter Measurement
True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Power Factor (PF), Frequency
Operating Conditions
Operating Temperature
-30..50 °C
Humidity
10-90%
Dimensions and weight
Width
85 mm
Depth
47 mm
Height
184 mm
Dimensions
Net Weight
0.2 kg
Gross Weight
0.35 kg
