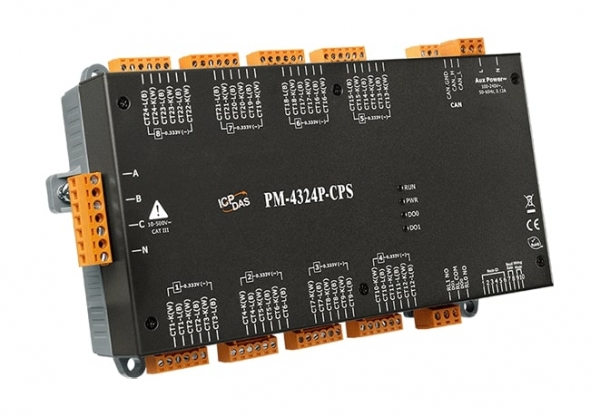

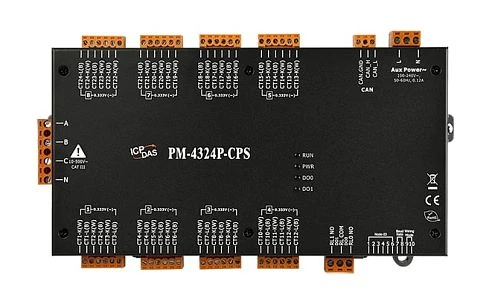

PM-4324P-CPS
ICP DAS
SKU: 09578800
CANopen, Multi-Channel Power Meter
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Supported Protocols
Industrial Protocols
CANopen
System Power Input
Input Voltage AC
85..264 V
AC Power Measurement
Frequency
50/60Hz
Input Voltage
10...500V AC
Voltage measurement channels
1 (three-phase)
Current measurement channels
24
CT Type
Split-core CT
Power Parameter Measurement
True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency
Digital Output
Total channels of digital output
2
Type
Electromagnitic relay
Operating Conditions
Operating Temperature
-20..70 °C
Dimensions and weight
Width
52 mm
Depth
237 mm
Height
134 mm
Dimensions
Gross Weight
0.5 kg
