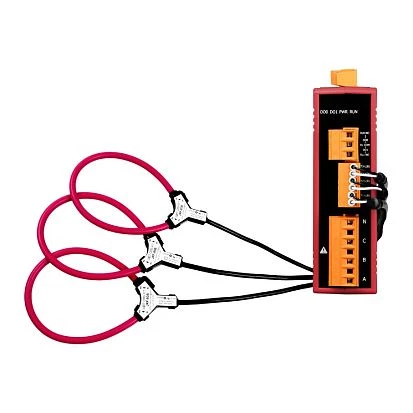

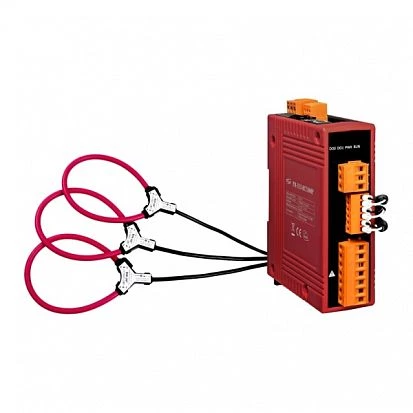

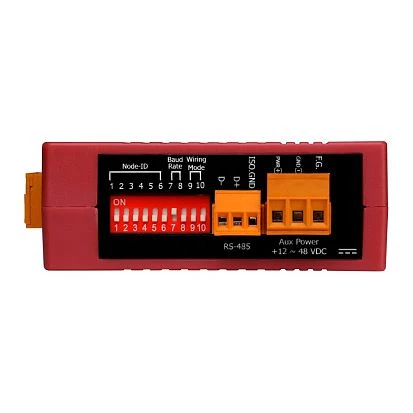

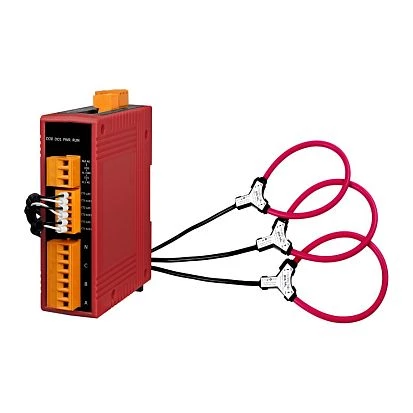

PM-3133-RCT1000P-CPS
ICP DAS
SKU: 08621400
CANopen, 3-phase power meter, 1000A Rogowski Coil CT
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Supported Protocols
Industrial Protocols
CAN Slave
System Power Input
Input Voltage DC
12..48 V
Interfaces
RS-485
1
AC Power Measurement
Frequency
50/60Hz
Input Voltage
10...500V AC
Input Current
1000A
CT Type
Rogowski Coil CT
Power Parameter Measurement
True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency, Total Harmonic Distortion (THD)
Digital Output
Total channels of digital output
2
Type
Electromagnitic relay
Operating Conditions
Operating Temperature
-20..70 °C
Dimensions and weight
Width
33 mm
Depth
105 mm
Height
127 mm
Dimensions
Gross Weight
0.5 kg
