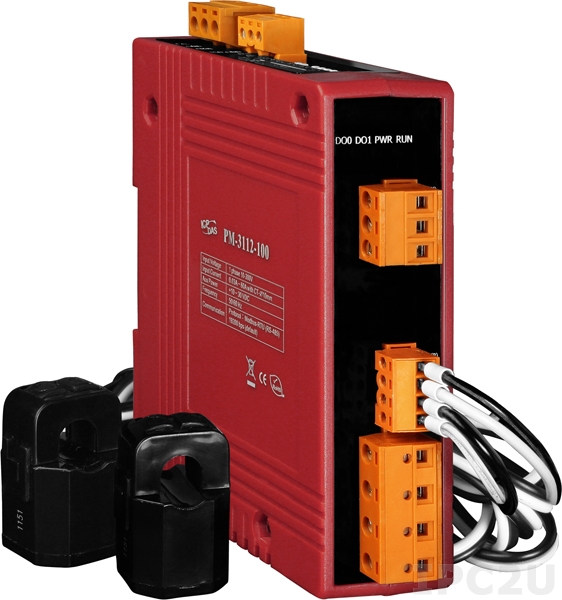

PM-3112-100
ICP DAS
SKU: 06138400
Modbus RTU; 2 loops single-phase Power Meter with 2 CTs (60 A)
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Supported Protocols
Industrial Protocols
Modbus RTU slave
System Power Input
Input Voltage DC
10..30 V
Interfaces
RS-485
1
AC Power Measurement
Frequency
50/60Hz
Input Voltage
10…300V AC
Voltage measurement channels
2 (single phase)
Input Current
60А
Current measurement channels
2
CT Type
Split-core CT
Power Parameter Measurement
True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency
Digital Output
Total channels of digital output
2
Type
Electromagnitic relay
Operating Conditions
Operating Temperature
-10..70 °C
Dimensions and weight
Width
33 mm
Depth
100 mm
Height
127 mm
Dimensions
Net Weight
0.4 kg
Gross Weight
0.4 kg
