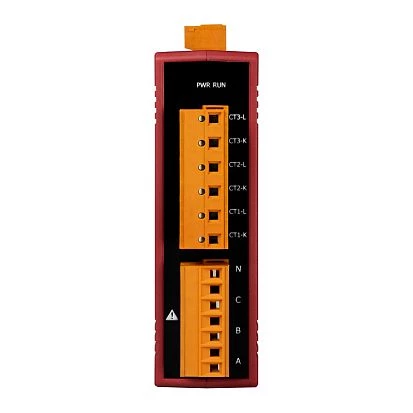

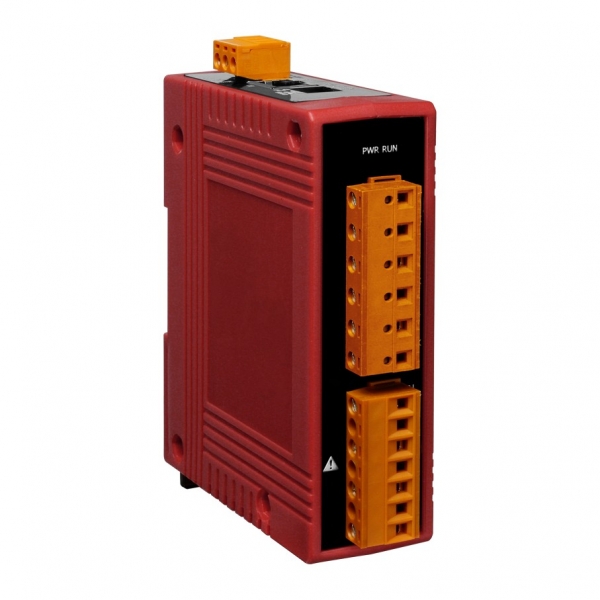

PM-3033-CPS
ICP DAS
SKU: 08623200
CANopen, 3-phase power meter (1A/5A CT Input type)
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Supported Protocols
Industrial Protocols
CAN Slave
System Power Input
Input Voltage DC
12..48 V
AC Power Measurement
Frequency
50/60Hz
Input Voltage
10...500V AC
Input Current
1A/5A
Power Parameter Measurement
True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency
Operating Conditions
Operating Temperature
-20..70 °C
Dimensions and weight
Width
33 mm
Depth
100 mm
Height
127 mm
Dimensions
Gross Weight
0.5 kg
