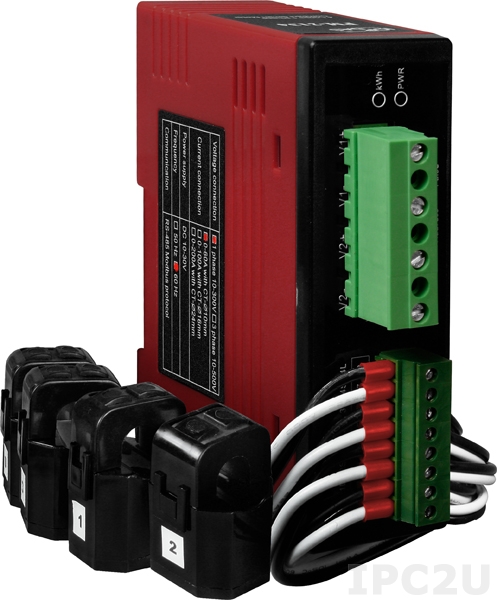

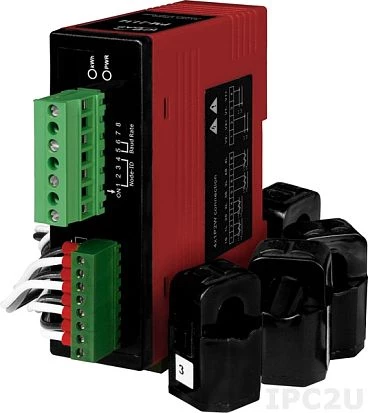

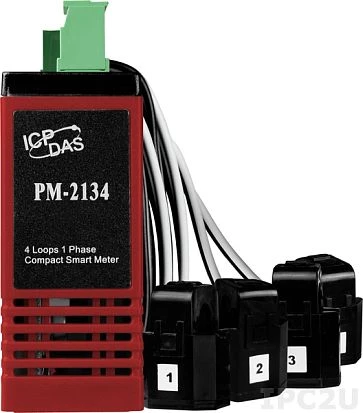

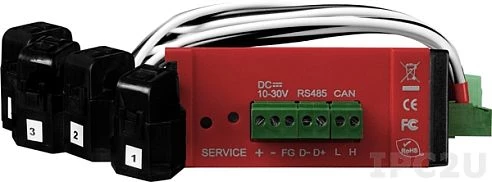

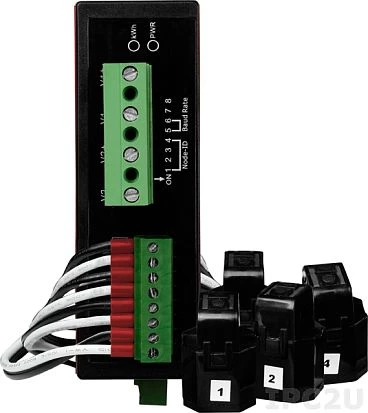

PM-2134-100-CAN
ICP DAS
SKU: 05842600
4 Loops 1 Phase Compact Smart Meter/CT:4pcs,?10mm(0-60A)/60 Hz/English, CanBus
End-of-life product
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Supported Protocols
Industrial Protocols
CAN, CAN Slave
System Power Input
Input Voltage DC
10..30 V
AC Power Measurement
Frequency
50/60Hz
Input Voltage
10…300V AC
Input Current
60А
Power Parameter Measurement
True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF)
Operating Conditions
Operating Temperature
-10..70 °C
Dimensions and weight
Width
33 mm
Depth
78 mm
Height
99 mm
Dimensions
Gross Weight
0.5 kg
