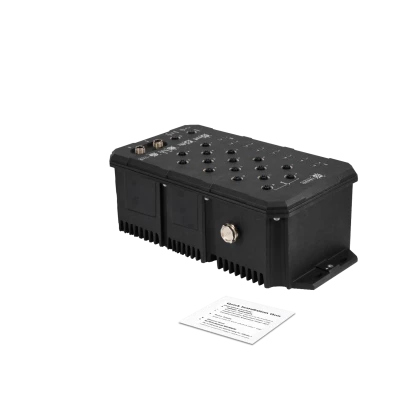

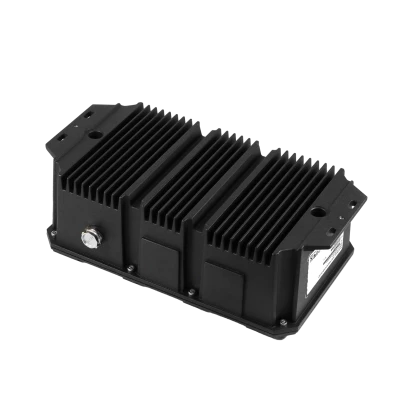

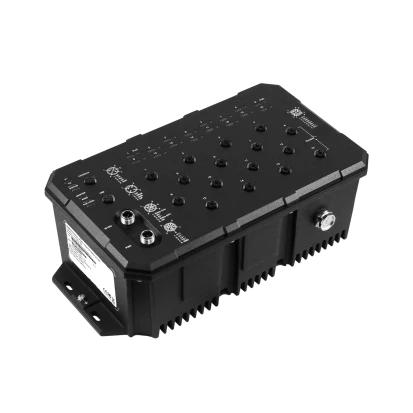

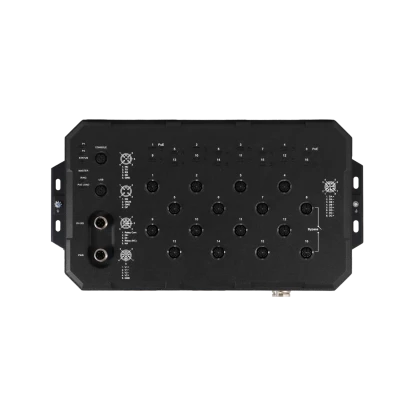

PG5-1600-M12XB-110-67
Leonton
SKU: 80119300
Industrial M12 Ethernet PoE+ Switch, IP67, 16x10/100/1000Base-T M12 with PoE, 1xCOM, 1xDI, Dual 24..110VDC, Operating Temperature -10..65 C
Price on request
Available
Available
Ethernet
Total Ethernet
16
10/100/1000 Mbit/s
16
PoE+ 10/100/1000 Mbit/s
16
Switch Properties
MAC Table Size
32000
Jumbo Frame Size
9.6 kB
Max. Number of VLANs
4095
IGMP Groups
1024
Supported Protocols
Managment Protocols
DHCP Server/Client, SNMPv1/v2c/v3, HTTP, LLDP, Telnet, NTP, GVRP, TFTP, LACP, GARP
Reservation protocols
ERPS, MSTP, STP, RSTP
Security Protocols
HTTPS, SSH, RADIUS, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
System Power Input
Input Voltage DC
24..110 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall
Protection Level of Chassis
IP67
Dimensions and weight
Width
160 mm
Depth
295 mm
Height
101.3 mm
Operating Conditions
Operating Temperature
-10..65 °C
Humidity
5-95%
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-6-2, EN 61000-6-4, EN 55032, EN 55035
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
4.3 kg
Gross Weight
5 kg
