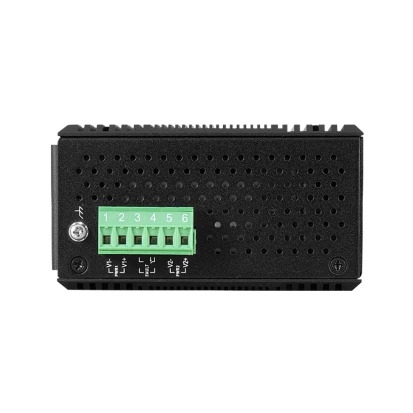

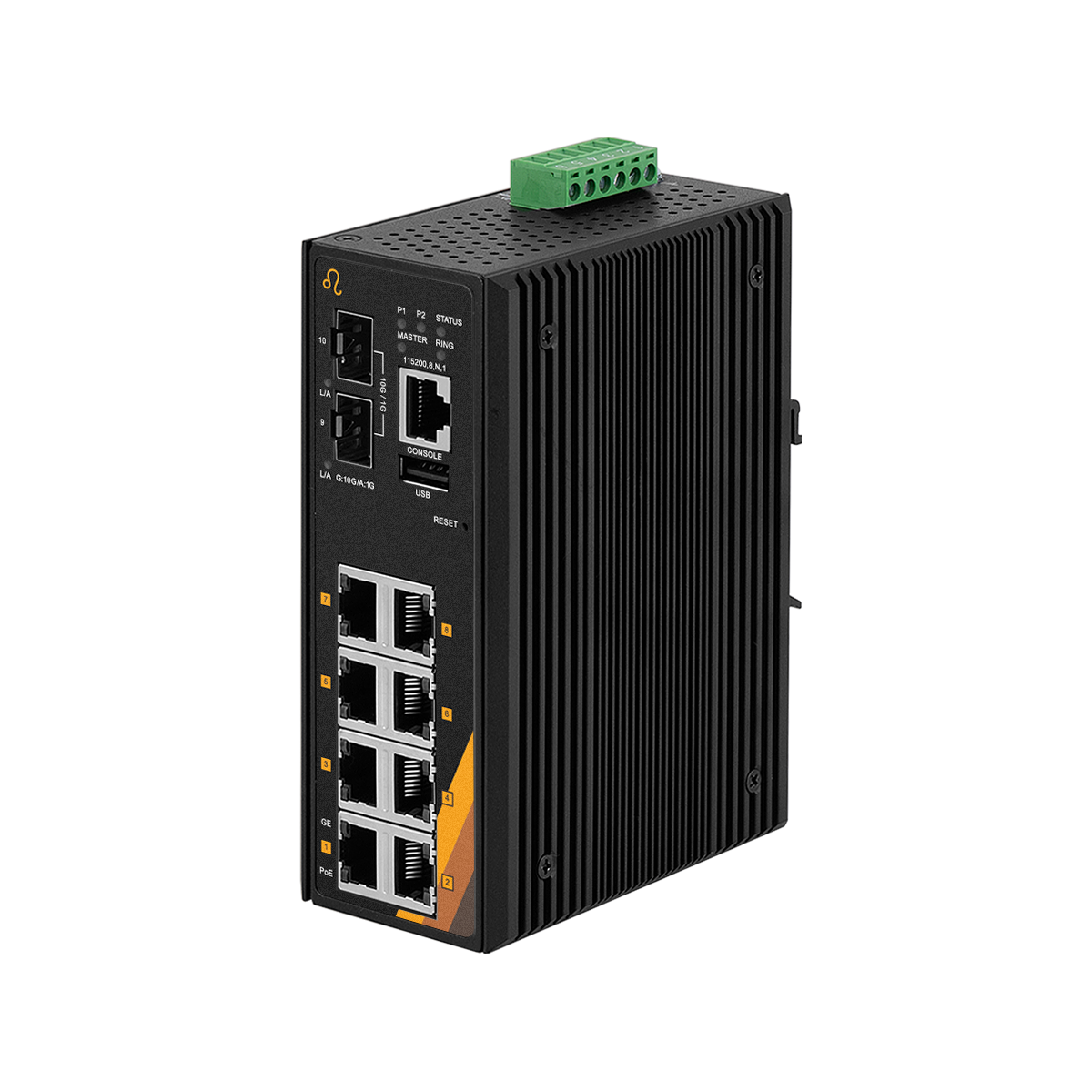

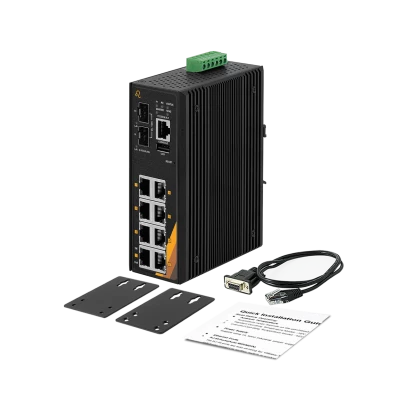

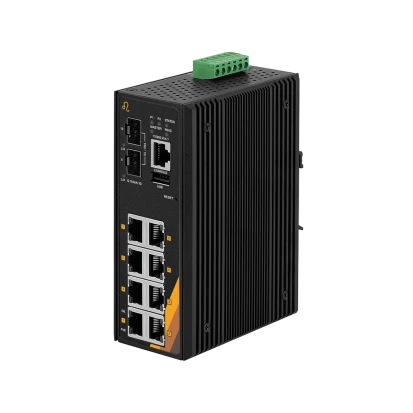

PG5-1002-10GSFP-24
Leonton
SKU: 80121100
Industrial Ethernet PoE+ Switch, IP30, 8x10/100/1000Base-TX with PoE+, 2x10G SFP+, 1xCOM, Dual 12..55VDC, Operating Temperature -40..60 C
Price on request
Available
Available
Ethernet
Total Ethernet
8
10/100/1000 Mbit/s
8
10 Gbit SFP+ Ports
2
PoE+ 10/100/1000 Mbit/s
8
Switch Properties
MAC Table Size
16000
Max. Number of VLANs
4095
IGMP Groups
1024
Supported Protocols
Managment Protocols
DHCP Server/Client, SNMPv1/v2c/v3, HTTP, LLDP, Telnet, DNS, NTP, GVRP, RMON, IGMP Snooping v1/v2/v3, GARP
Reservation protocols
ERPS, MSTP, STP, RSTP
Security Protocols
HTTPS, SSH, RADIUS, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
System Power Input
Input Voltage DC
12..55 V
Construction
Protection Level of Chassis
IP30
Dimensions and weight
Width
54 mm
Depth
142 mm
Height
99 mm
Operating Conditions
Operating Temperature
-40..60 °C
Humidity
5-95%
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-6-2, EN 61000-6-4
Safety
UL 61010-2-201
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1.2 kg
Gross Weight
1.5 kg
