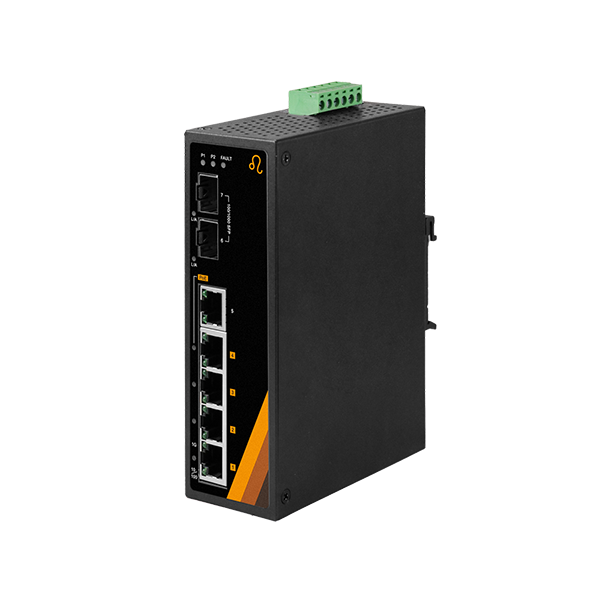

PG2-0702-SFP-24
Leonton
SKU: 80061900
Industrial Ethernet Switch, IP30, 5x10/100/1000Base-TX with 4xPoE+, 2x100/1000 SFP, Dual 12..55VDC, Operating Temperature -10..65 C
Price on request
Available
Available
Ethernet
Total Ethernet
5
10/100/1000 Mbit/s
5
SFP 100/1000 Mbit Ports
2
PoE+ 10/100/1000 Mbit/s
4
Switch Properties
MAC Table Size
8000
Jumbo Frame Size
12.2 kB
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3u for 100BaseT(X)

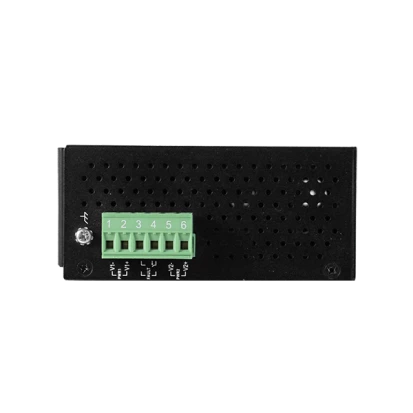

System Power Input
Input Voltage DC
12..55 V
Construction

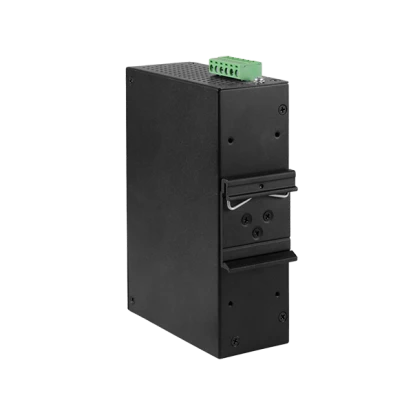

Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
46 mm
Depth
142 mm
Height
99 mm
Operating Conditions
Operating Temperature
-10..60 °C
Humidity
5-95%
MTBF
735481 h
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A
EMS
EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN 61000-6-4
Safety
UL 61010-2-201, UL 61010
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.62 kg
Gross Weight
1.2 kg
