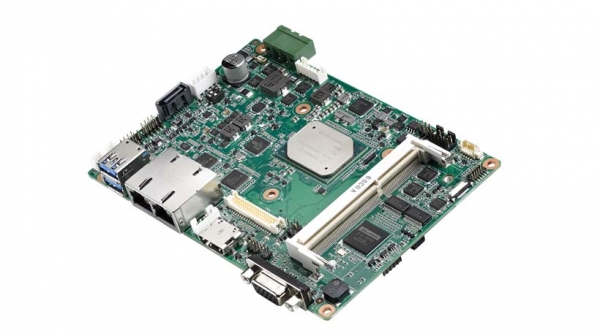

3.5" Embedded CPU Card with Intel Atom E3950 1.6GHz, DDR3L, VGA, HDMI, 2xGbE LAN, 4xCOM, 2xUSB 3.0, 4xUSB 3.0, mSATA, SMBus, I2C, GPIO, M.2 E Key, MiniPCIe
PCM-9366E-S7A2
Advantech
SKU: 09389200
Price on request
Available on order
Available on order
System Architecture
Form Factor
3.5"
Construction
Type
Fanless
CPU
Processor Installed
Intel Atom E3950
Max CPU frequency
2 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Assembly
Removable
Ethernet
Controller Type
Intel i210
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
USB Total
8
USB 2.0
4
USB v3.x
4
Audio
Audio Controller
Realtek ALC888
Extension Slots
M.2
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
DB15 VGA, HDMI, 2xRJ45, 2xUSB
Dimensions and weight
Width
146 mm
Length
102 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
0.85 kg
Gross Weight
1 kg
