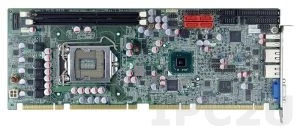

PICMG 1.3 CPU Card supports LGA1155 Intel Core i7/i5/i3/Pentium and Celeron CPU per Intel H61, DDR3 1600/1333MHz, 1xVGA, 2xRS-232, 1xRS-422/485, 1xLPT, 1xFDD, 6xUSb 2.0, 4xUSB 3.0, LAN, 4xSATA, HD Audio
PCIE-H610
IEI
SKU: 05967400
End-of-life product
System Architecture
Form Factor
Full Size PICMG 1.3
CPU
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Socket
LGA1155
Chipset
Chipset
Intel H61
Memory
Form-factor
DDR3, DDR3L
Socket Type
2xDIMM
Maximum Memory
16 GB
Graphic
Graphic Controller
Integrated in Chipset
Interfaces
VGA
Ethernet
Controller Type
Realtek RTL8111E PCIe GbE
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232
2
RS-422/485
1
USB Total
6
USB 2.0
6
LPT
LPT
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
IRDA, 4xSATA 2, 2xUSB 2.0, 10-pin DIO, 34-pin FDD, TPM, 4-pin SMBus, 1x4-pin RS-422/485, 26-pin LPT, 2x10-pin RS-232, 6-pin KB/MS, 4-pin ATX, 10-pin Audio
Connectors
DB15 VGA, 2xRJ45 Ethernet, 2xUSB
Dimensions and weight
Width
126 mm
Length
338 mm
Operating Conditions
Operating Temperature
-10..60 °C
Dimensions
Net Weight
1.1 kg
Gross Weight
1.6 kg
