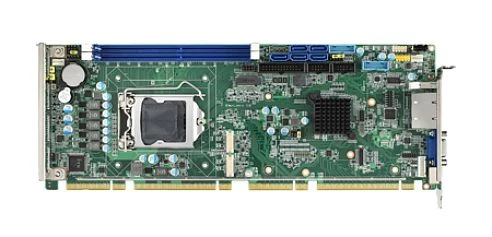

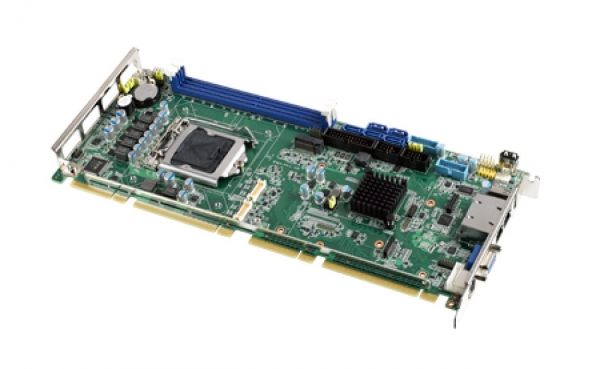

PICMG 1.3 LGA1151 Intel Xeon/Core i3/Pentium CPU Card with DDR4, VGA, DP, DVI-D, 2xGbE LAN, 2xCOM, 1xUSB 3.0 (rear), 4xUSB 3.0, 7xUSB 2.0 (internal), SATA 3.0, Audio
PCE-7129G2-00A2E
Advantech
SKU: 09369900
Price on request
Available on order
Available on order
System Architecture
Form Factor
Full Size PICMG 1.3
CPU
СPU Generation/Family
Skylake, Kaby Lake
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium, Xeon
Socket
LGA1151
Chipset
Chipset
Intel C236
Memory
Form-factor
DDR4
Socket Type
2xDIMM
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-AT, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
USB Total
12
USB 2.0
7
USB v3.x
5
Drive interfaces
RAID Levels
1, 5, 10
M.2
1
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
2xCOM, 4-pin (12V DC CPU), 7x4-pin USB 2.0, USB 3.0, DVI-D, 5xSATA 3, Display port
Connectors
DB15 VGA, PS/2 Keyboard/Mouse, 2xRJ45 Ethernet
Dimensions and weight
Width
338 mm
Length
122 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
1.1 kg
Gross Weight
1.1 kg
