OMIVEAC-IAD7T
Winmate
SKU: 80235800

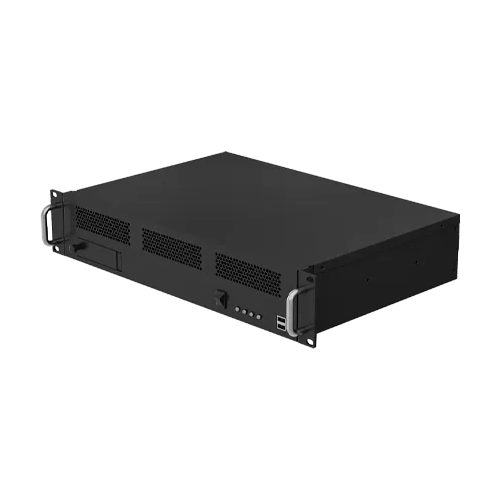

2U Rackmount Server, Intel Core i7-14700T 5.2GHz CPU, R680E, 32GB DDR5 RAM, 512GB NVME SSD, HDMI, DP, 2x2.5GbE LAN, 4xUSB 3.2, 2xUSB 2.0, 3xCOM, 2x2.5" Drive Bay (RAID 0/1) Optional, 1xM.2 Key-E, 1xPCIe 4.0 x16, Audio, 110-240VAC-in PSU
Price on request
Available
Available
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
19" Rackmount
Height
2 U
Type
Fanless
CPU
СPU Generation/Family
Raptor Lake
Processor Installed
Intel Core i7-14700T
Socket
LGA1700
Max CPU frequency
5.2 GHz
Chipset
Chipset
Intel R680E
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Registred
No
Default on Board Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI
Ethernet
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
3
RS-232
2
RS-232/422/485
1
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
SATA 3
2
M.2
1
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
1
2.5" Cage External
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
512 GB
Extension Slots
Total
3
PCI Express x16
1
M.2
2
M.2 Form Factor
2280 M, 2230 E
LED / Controls
LED
Power LED, SSD LED
Controls
On/Off, 1xReset
Connectors
Connectors
3xDB9, HDMI, 2xRJ45 Ethernet, 6xUSB, Mic In, Line Out, AC Input, Display Port
Power Supply
Type of Power Supply
Internal
Input Voltage AC
110..240 V
Software
Operating System Compatibility
Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
482.6 mm
Height
88 mm
Depth
384 mm
Operating Conditions
Operating Temperature
-10..60 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE/FCC
Vibration And Shock
IEC 60068-2-64, IEC 61850-3
Dimensions
Net Weight
8.2 kg
Gross Weight
10.5 kg
