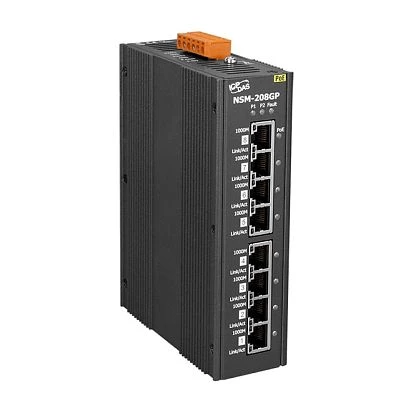

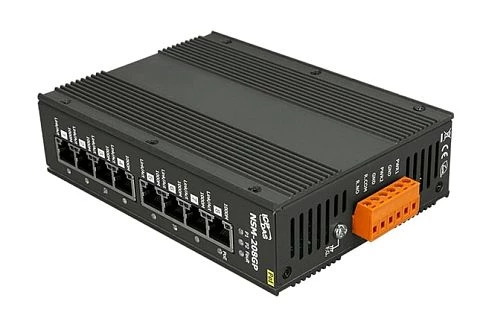

NSM-208GP
ICP DAS
SKU: 09873400
Industrial Smart Ethernet Switch with 8 10/100/1000 Base-T Ports, PoE IEEE 802.3at, Wide Temperature Range, IP20
Price on request
Available
Available
Ethernet
Total Ethernet
8
10/100/1000 Mbit/s
8
Type 10/100/1000 Mbit/s
8xRJ-45
PoE+ 10/100/1000 Mbit/s
8
Power Budget
240 W
Switch Properties
Switch Level
Layer 2
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
10A@30V DC
System Power Input
Redundant power input
Yes
Input Voltage DC
24..53 V
Power Supply Reserve input Voltage DC
24..53 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP20
Dimensions and weight
Width
42 mm
Depth
120 mm
Height
164 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
Certifications
CE, WEEE, FCC
Dimensions
Net Weight
0.3 kg
Gross Weight
0.6 kg
