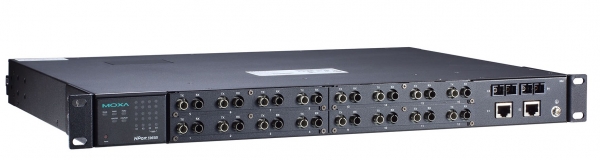

NPort S9650I-8F-2HV-MSC-T

NPort S9650I-8F-2HV-MSC-T

MOXA
SKU: 07916300
8-port RS-232/422/485 rugged device server with multimode ST serial, 2 10/100M Ethernet ports with IEEE 1588v2 support, 88-300 VDC or 85-264 VAC, -40 to 85C operating temperature, with 2-port Ethernet multimode SC
Price on request
Available
Available

Ethernet
Total Ethernet
4
10/100 Mbit/s
4
Type 10/100 Mbit/s
2xSC, 2xRJ-45
Fiber
Number of Optical Ports
2xSC
Type of Fibre Optic
multi-mode
Interfaces
COM Total
8
RS-232/422/485
8
Isolation of COM Ports
2 kV (RS-232/422/485)
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
Supported Protocols
Industrial Protocols
Modbus TCP, Modbus RTU, Modbus ASCII, DNP3 serial master, DNP3 serial slave, DNP3 ethernet client, DNP3 ethernet server
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, HTTP, Telnet, UDP, DNS, SNTP, GVRP, RMON, TFTP, LACP, BootP, ARP, IEEE 1588 PTP V2 (software based), TCP, IGMPv1/v2, DHCP Option 66/67/82, GMRP, RARP, ICMP
System Power Input
Input Voltage DC
88..300 V
Input Voltage AC
85..264 V
Operating Conditions
Operating Temperature
-40..85 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Dimensions and weight
Width
457 mm
Depth
330 mm
Height
32 mm
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 22 Class
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 61000-6-2, EN 61000-6-4
Power Automation
IEC 61850-3, IEEE 1613
Safety
UL 61010-2-201, EN 61010-2-201
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
5.15 kg
Gross Weight
6 kg
Ethernet
Total Ethernet
4
10/100 Mbit/s
4
Type 10/100 Mbit/s
2xSC, 2xRJ-45
Fiber
Number of Optical Ports
2xSC
Type of Fibre Optic
multi-mode
Interfaces
COM Total
8
RS-232/422/485
8
Isolation of COM Ports
2 kV (RS-232/422/485)
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
Supported Protocols
Industrial Protocols
Modbus TCP, Modbus RTU, Modbus ASCII, DNP3 serial master, DNP3 serial slave, DNP3 ethernet client, DNP3 ethernet server
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, HTTP, Telnet, UDP, DNS, SNTP, GVRP, RMON, TFTP, LACP, BootP, ARP, IEEE 1588 PTP V2 (software based), TCP, IGMPv1/v2, DHCP Option 66/67/82, GMRP, RARP, ICMP
System Power Input
Input Voltage DC
88..300 V
Input Voltage AC
85..264 V
Operating Conditions
Operating Temperature
-40..85 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Dimensions and weight
Width
457 mm
Depth
330 mm
Height
32 mm
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 22 Class
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 61000-6-2, EN 61000-6-4
Power Automation
IEC 61850-3, IEEE 1613
Safety
UL 61010-2-201, EN 61010-2-201
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
5.15 kg
Gross Weight
6 kg
Ethernet
Total Ethernet
4
10/100 Mbit/s
4
Type 10/100 Mbit/s
2xSC, 2xRJ-45
Fiber
Number of Optical Ports
2xSC
Type of Fibre Optic
multi-mode
Interfaces
COM Total
8
RS-232/422/485
8
Isolation of COM Ports
2 kV (RS-232/422/485)
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
Supported Protocols
Industrial Protocols
Modbus TCP, Modbus RTU, Modbus ASCII, DNP3 serial master, DNP3 serial slave, DNP3 ethernet client, DNP3 ethernet server
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, HTTP, Telnet, UDP, DNS, SNTP, GVRP, RMON, TFTP, LACP, BootP, ARP, IEEE 1588 PTP V2 (software based), TCP, IGMPv1/v2, DHCP Option 66/67/82, GMRP, RARP, ICMP
System Power Input
Input Voltage DC
88..300 V
Input Voltage AC
85..264 V
Operating Conditions
Operating Temperature
-40..85 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Dimensions and weight
Width
457 mm
Depth
330 mm
Height
32 mm
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 22 Class
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 61000-6-2, EN 61000-6-4
Power Automation
IEC 61850-3, IEEE 1613
Safety
UL 61010-2-201, EN 61010-2-201
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
5.15 kg
Gross Weight
6 kg
Ethernet
Total Ethernet
4
10/100 Mbit/s
4
Type 10/100 Mbit/s
2xSC, 2xRJ-45
Fiber
Number of Optical Ports
2xSC
Type of Fibre Optic
multi-mode
Interfaces
COM Total
8
RS-232/422/485
8
Isolation of COM Ports
2 kV (RS-232/422/485)
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
Supported Protocols
Industrial Protocols
Modbus TCP, Modbus RTU, Modbus ASCII, DNP3 serial master, DNP3 serial slave, DNP3 ethernet client, DNP3 ethernet server
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, HTTP, Telnet, UDP, DNS, SNTP, GVRP, RMON, TFTP, LACP, BootP, ARP, IEEE 1588 PTP V2 (software based), TCP, IGMPv1/v2, DHCP Option 66/67/82, GMRP, RARP, ICMP
System Power Input
Input Voltage DC
88..300 V
Input Voltage AC
85..264 V
Operating Conditions
Operating Temperature
-40..85 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Dimensions and weight
Width
457 mm
Depth
330 mm
Height
32 mm
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 22 Class
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 61000-6-2, EN 61000-6-4
Power Automation
IEC 61850-3, IEEE 1613
Safety
UL 61010-2-201, EN 61010-2-201
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
5.15 kg
Gross Weight
6 kg

Documentation
Datasheet for NPort S9650I NPort S9000 QIG Manual for NPort S9650I
Documentation
Datasheet for NPort S9650I NPort S9000 QIG Manual for NPort S9650I
Documentation
Datasheet for NPort S9650I NPort S9000 QIG Manual for NPort S9650I
Documentation
Datasheet for NPort S9650I NPort S9000 QIG Manual for NPort S9650I
