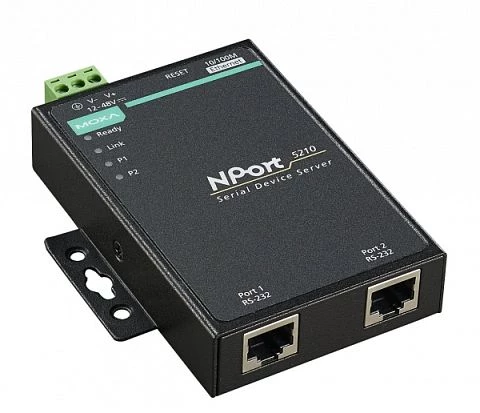

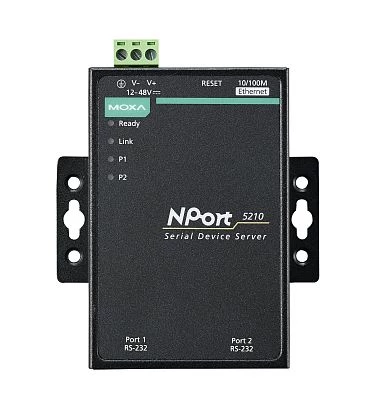

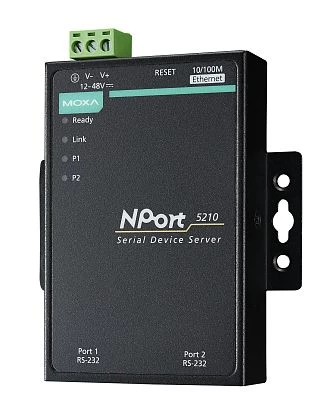

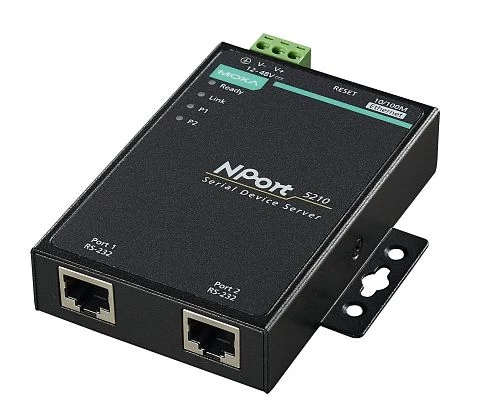

NPort 5210-T
MOXA
SKU: 02812000
2-Port RS-232 Serial Device Server), Extended Operating Temperature -40...+75°C
Price on request
Available
Available
Interface server NPort 5210-T developed by MOXA transmits data packets from various serial interface equipment via Ethernet network or wireless connection at the speed up to 230400 bit/s. The device is housed in a robust chassis with 2 RS-232 COM-ports and 1 Ethernet port. It can be mounted on a wall or a DIN-rail. The server works with basic protocols: SNTP, SMTP, BootP, HTTP, Telnet, ICMP, TCP, UDP, DHCP, DNS, SNMP V1. The server can be set up by means of Telnet, a console port, or a Web-interface. It is compatible with standard operating systems. The device works within a temperature range of -40 ... +75 °C.
Interface server NPort 5210-T developed by MOXA transmits data packets from various serial interface equipment via Ethernet network or wireless connection at the speed up to 230400 bit/s. The device is housed in a robust chassis with 2 RS-232 COM-ports and 1 Ethernet port. It can be mounted on a wall or a DIN-rail. The server works with basic protocols: SNTP, SMTP, BootP, HTTP, Telnet, ICMP, TCP, UDP, DHCP, DNS, SNMP V1. The server can be set up by means of Telnet, a console port, or a Web-interface. It is compatible with standard operating systems. The device works within a temperature range of -40 ... +75 °C.
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Type 10/100 Mbit/s
1xRJ-45
Interfaces
COM Total
2
RS-232
2
Supported Protocols
Managment Protocols
SMTP, HTTP, Telnet, UDP, DNS, DHCP, SNTP, BootP, TCP, SNMP V1, ICMP
LED / Controls
LED
READY LED, COM-ports LED, LNK/ACT LED
Setup of Operation Mode
Telnet, Console Port, Web-interface
Controls
1xReset
Connectors
Connectors
DC input (terminal block)
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-40..75 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
90.2 mm
Depth
22 mm
Height
100.4 mm
Standards and Certifications
Certifications
CE, FCC, EN 60601
EMI
EN 55022, FCC Part 15
EMS
EN 55024
Marine grade
DNV
Safety
UL 60950-1, EN 60950-1
Dimensions
Net Weight
0.28 kg
Gross Weight
0.28 kg
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Type 10/100 Mbit/s
1xRJ-45
Interfaces
COM Total
2
RS-232
2
Supported Protocols
Managment Protocols
SMTP, HTTP, Telnet, UDP, DNS, DHCP, SNTP, BootP, TCP, SNMP V1, ICMP
LED / Controls
LED
READY LED, COM-ports LED, LNK/ACT LED
Setup of Operation Mode
Telnet, Console Port, Web-interface
Controls
1xReset
Connectors
Connectors
DC input (terminal block)
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-40..75 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
90.2 mm
Depth
22 mm
Height
100.4 mm
Standards and Certifications
Certifications
CE, FCC, EN 60601
EMI
EN 55022, FCC Part 15
EMS
EN 55024
Marine grade
DNV
Safety
UL 60950-1, EN 60950-1
Dimensions
Net Weight
0.28 kg
Gross Weight
0.28 kg
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Type 10/100 Mbit/s
1xRJ-45
Interfaces
COM Total
2
RS-232
2
Supported Protocols
Managment Protocols
SMTP, HTTP, Telnet, UDP, DNS, DHCP, SNTP, BootP, TCP, SNMP V1, ICMP
LED / Controls
LED
READY LED, COM-ports LED, LNK/ACT LED
Setup of Operation Mode
Telnet, Console Port, Web-interface
Controls
1xReset
Connectors
Connectors
DC input (terminal block)
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-40..75 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
90.2 mm
Depth
22 mm
Height
100.4 mm
Standards and Certifications
Certifications
CE, FCC, EN 60601
EMI
EN 55022, FCC Part 15
EMS
EN 55024
Marine grade
DNV
Safety
UL 60950-1, EN 60950-1
Dimensions
Net Weight
0.28 kg
Gross Weight
0.28 kg
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Type 10/100 Mbit/s
1xRJ-45
Interfaces
COM Total
2
RS-232
2
Supported Protocols
Managment Protocols
SMTP, HTTP, Telnet, UDP, DNS, DHCP, SNTP, BootP, TCP, SNMP V1, ICMP
LED / Controls
LED
READY LED, COM-ports LED, LNK/ACT LED
Setup of Operation Mode
Telnet, Console Port, Web-interface
Controls
1xReset
Connectors
Connectors
DC input (terminal block)
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-40..75 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
90.2 mm
Depth
22 mm
Height
100.4 mm
Standards and Certifications
Certifications
CE, FCC, EN 60601
EMI
EN 55022, FCC Part 15
EMS
EN 55024
Marine grade
DNV
Safety
UL 60950-1, EN 60950-1
Dimensions
Net Weight
0.28 kg
Gross Weight
0.28 kg
