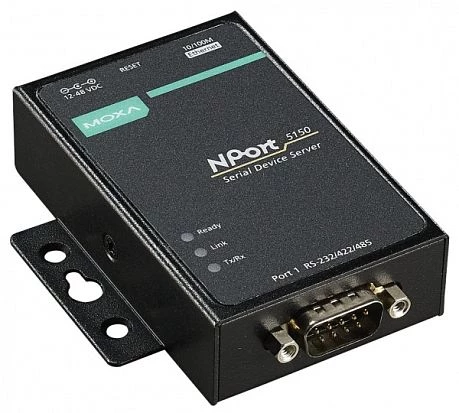

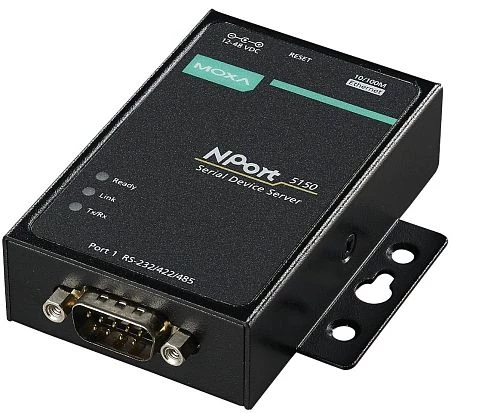

MOXA NPort 5150

Name:

MOXA

COM Total:

1

RS-232/422/485:

1

Maximum Transfer Rate RS-232/422/485:

921600 Bit/s

Total Ethernet:

1

10/100 Mbit/s:

1

Type 10/100 Mbit/s:

1xRJ-45

Protocol:

SMTP, BootP, HTTP, Telnet, ICMP, TCP, UDP, DHCP, DNS, SNMP V1

IP Layer:

IPv4

Type:

Fanless

LED:

READY LED, TX LED, RX LED, LNK/ACT LED

Control Switches:

1xReset

Setup of Operation Mode:

Telnet, Via COM-port, Web-interface

Connectors:

DC Input

Input Voltage DC:

12 ... 48 V

Power Consumption:

2.544 W

Current:

106 mA (24 V)

Operating System Compatibility:

Android, Linux kernel 2.6, Windows CE 5.0, Windows CE 6.0, Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows XP, Windows XP Embedded, Windows 7, Windows 8, Linux kernel 2.4, Linux kernel 3.x, Windows 95, Windows 98, Windows ME, Windows NT, Windows 2000, Windows Vista, Windows 8.1, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X, Windows 10, Windows Server 2016, Linux kernel 4.x, SCO Unix, SCO OpenServer, Windows Server 2019

Temperature:

0 ... 55 °C

Humidity:

5 ... 95 % (non-condensing)

MTBF:

2736202

Temperature Range:

-20 ... 75 °C

Construction Chassis:

Metal Chassis

Mounting Configuration:

Wall, DIN-Rail mount

Width:

75.2 mm

Height:

80 mm

Depth:

22 mm

Certifications:

CE, FCC

Safety:

UL 60950-1, EN 60950-1

EMS:

EN 55024

EMI:

EN 55022, FCC Part 15
