NPort IAW5250A-12I/O-EU

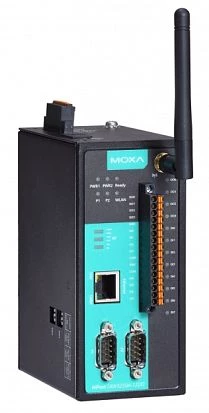

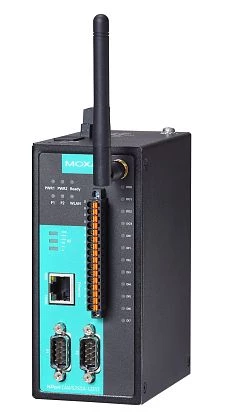

NPort IAW5250A-12I/O-EU

MOXA
SKU: 07805500
2-port RS-232/422/485 wireless device server with 802.11a/b/g /n WLAN, 8DI, 4DO, EU Band
End-of-life product

Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Type 10/100 Mbit/s
1xRJ-45
Interfaces
COM Total
2
RS-232/422/485
2
Digital Input
Total channels of digital input
8
Level of Logic "1"
10~30 V
Level of Logic "0"
0~3 V
Type
Dry contact, Wet contact
Digital Output
Total channels of digital output
4
Type
Open collector
Output voltage
5~30 V
Max. load current
200 mA
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n
Quantity of Wi-Fi
1
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus TCP, MQTT client, MQTT
Managment Protocols
SMTP, SNMPv1/v2c/v3, HTTP, Telnet, UDP, DNS, DHCP, SNTP, TCP, ICMP
Security Protocols
HTTPS, SSH
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
0..60 °C
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount
Dimensions and weight
Width
60 mm
Depth
102 mm
Height
134 mm
Standards and Certifications
Certifications
CE, IEC 61000-6-2, IEC 61000-6-4, FCC Class A
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
Safety
EN 60950, UL 60950-1
Dimensions
Gross Weight
1.5 kg
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Type 10/100 Mbit/s
1xRJ-45
Interfaces
COM Total
2
RS-232/422/485
2
Digital Input
Total channels of digital input
8
Level of Logic "1"
10~30 V
Level of Logic "0"
0~3 V
Type
Dry contact, Wet contact
Digital Output
Total channels of digital output
4
Type
Open collector
Output voltage
5~30 V
Max. load current
200 mA
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n
Quantity of Wi-Fi
1
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus TCP, MQTT client, MQTT
Managment Protocols
SMTP, SNMPv1/v2c/v3, HTTP, Telnet, UDP, DNS, DHCP, SNTP, TCP, ICMP
Security Protocols
HTTPS, SSH
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
0..60 °C
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount
Dimensions and weight
Width
60 mm
Depth
102 mm
Height
134 mm
Standards and Certifications
Certifications
CE, IEC 61000-6-2, IEC 61000-6-4, FCC Class A
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
Safety
EN 60950, UL 60950-1
Dimensions
Gross Weight
1.5 kg
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Type 10/100 Mbit/s
1xRJ-45
Interfaces
COM Total
2
RS-232/422/485
2
Digital Input
Total channels of digital input
8
Level of Logic "1"
10~30 V
Level of Logic "0"
0~3 V
Type
Dry contact, Wet contact
Digital Output
Total channels of digital output
4
Type
Open collector
Output voltage
5~30 V
Max. load current
200 mA
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n
Quantity of Wi-Fi
1
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus TCP, MQTT client, MQTT
Managment Protocols
SMTP, SNMPv1/v2c/v3, HTTP, Telnet, UDP, DNS, DHCP, SNTP, TCP, ICMP
Security Protocols
HTTPS, SSH
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
0..60 °C
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount
Dimensions and weight
Width
60 mm
Depth
102 mm
Height
134 mm
Standards and Certifications
Certifications
CE, IEC 61000-6-2, IEC 61000-6-4, FCC Class A
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
Safety
EN 60950, UL 60950-1
Dimensions
Gross Weight
1.5 kg
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Type 10/100 Mbit/s
1xRJ-45
Interfaces
COM Total
2
RS-232/422/485
2
Digital Input
Total channels of digital input
8
Level of Logic "1"
10~30 V
Level of Logic "0"
0~3 V
Type
Dry contact, Wet contact
Digital Output
Total channels of digital output
4
Type
Open collector
Output voltage
5~30 V
Max. load current
200 mA
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n
Quantity of Wi-Fi
1
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus TCP, MQTT client, MQTT
Managment Protocols
SMTP, SNMPv1/v2c/v3, HTTP, Telnet, UDP, DNS, DHCP, SNTP, TCP, ICMP
Security Protocols
HTTPS, SSH
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
0..60 °C
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount
Dimensions and weight
Width
60 mm
Depth
102 mm
Height
134 mm
Standards and Certifications
Certifications
CE, IEC 61000-6-2, IEC 61000-6-4, FCC Class A
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
Safety
EN 60950, UL 60950-1
Dimensions
Gross Weight
1.5 kg

Documentation
NPort_IAW5000A-6I_O_datasheet NPort IAW5000A QIG NPort_IAW5150A_IA5150A_usermanual
Documentation
NPort_IAW5000A-6I_O_datasheet NPort IAW5000A QIG NPort_IAW5150A_IA5150A_usermanual
Documentation
NPort_IAW5000A-6I_O_datasheet NPort IAW5000A QIG NPort_IAW5150A_IA5150A_usermanual
Documentation
NPort_IAW5000A-6I_O_datasheet NPort IAW5000A QIG NPort_IAW5150A_IA5150A_usermanual
