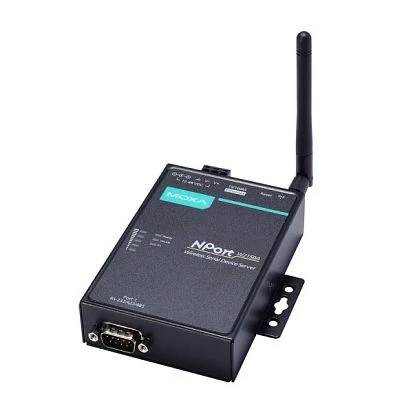

NPort W2150A-EU
MOXA
SKU: 05984100
1-port RS-232/422/485 wireless device server with 802.11a/b/g/n WLAN, antenna, 0 to 55C operating temperature, include power adapter
Price on request
Available
Available
Industrial serial interface server NPort W2150A from MOXA is used to control devices with a serial interface via Ethernet. NPort W2150A housing includes 1 Ethernet port and 1 RS-232/422/485 port. The device can be mounted either on a wall, or on a DIN-rail. The server operates with key protocols: SNTP, SMTP, SNMPv1/v2c/v3, HTTP, HTTPS, SSH, Telnet, ICMP, TCP, UDP, DHCP, DNS. The operation modes of the server can be configured by means of Telnet, a console port, or a Web-interface. The device can be used with all widely spread operating systems. The server functions within a broad temperature range of 0 ... 55°C.
Industrial serial interface server NPort W2150A from MOXA is used to control devices with a serial interface via Ethernet. NPort W2150A housing includes 1 Ethernet port and 1 RS-232/422/485 port. The device can be mounted either on a wall, or on a DIN-rail. The server operates with key protocols: SNTP, SMTP, SNMPv1/v2c/v3, HTTP, HTTPS, SSH, Telnet, ICMP, TCP, UDP, DHCP, DNS. The operation modes of the server can be configured by means of Telnet, a console port, or a Web-interface. The device can be used with all widely spread operating systems. The server functions within a broad temperature range of 0 ... 55°C.
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Type 10/100 Mbit/s
1xRJ-45
Interfaces
COM Total
1
RS-232/422/485
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n
Quantity of Wi-Fi
1
Supported Protocols
Managment Protocols
SMTP, SNMPv1/v2c/v3, HTTP, Syslog, Telnet, UDP, DNS, DHCP, SNTP, TCP, DHCP Option 66/67/82, ICMP
Security Protocols
HTTPS, SSH, TACACS+
Switch Properties
Supported functions
Real time clock
LED / Controls
LED
Level signal LED, 10/100M LED, WLAN LED, READY LED, COM-ports LED
Setup of Operation Mode
Telnet, Console Port, Web-interface
Controls
1xReset
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
0..55 °C
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
77 mm
Depth
26 mm
Height
111 mm
Standards and Certifications
Certifications
CE, FCC
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 55024, EN 55032
Dimensions
Gross Weight
1 kg
