NPort W2250A-EU
MOXA
SKU: 05985000
2 Port Wireless Device Server, 3-in-1, 802.11 a/b/g/n WLAN, 12-48 VDC, 0 to 55C, w/adapter
Price on request
Available
Available

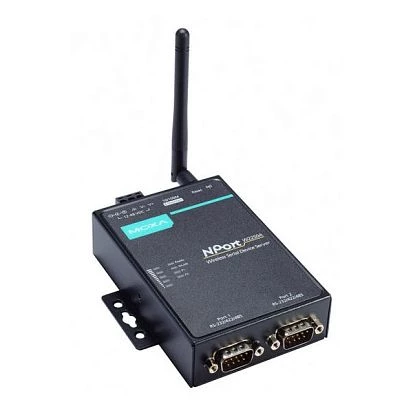

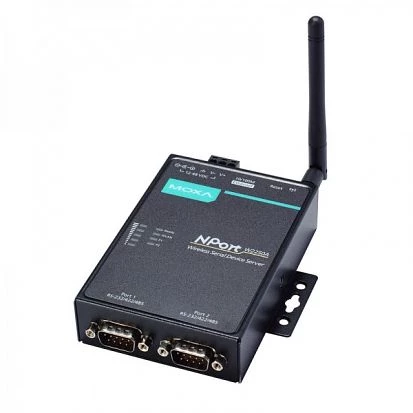

Serial interface server NPort W2250A developed by MOXA is helps to centralize the control over equipment with RS-232/422/485 interface via Ethernet. The server has a metal housing with 2 RS-232/422/485 ports and 1 Ethernet port. The server is mounted either on a wall, or on a DIN-rail. It secures interaction with all basic protocols: SNTP, SMTP, SNMPv1/v2c/v3, HTTP, HTTPS, SSH, Telnet, ICMP, TCP, UDP, DHCP, DNS. The modes of operation can be set up by means of Telnet, a console port, or a Web-interface. It is compatible with all basic operating systems. The device ensures permanent operation within a broad temperature range of 0 ... 55 °C.
Serial interface server NPort W2250A developed by MOXA is helps to centralize the control over equipment with RS-232/422/485 interface via Ethernet. The server has a metal housing with 2 RS-232/422/485 ports and 1 Ethernet port. The server is mounted either on a wall, or on a DIN-rail. It secures interaction with all basic protocols: SNTP, SMTP, SNMPv1/v2c/v3, HTTP, HTTPS, SSH, Telnet, ICMP, TCP, UDP, DHCP, DNS. The modes of operation can be set up by means of Telnet, a console port, or a Web-interface. It is compatible with all basic operating systems. The device ensures permanent operation within a broad temperature range of 0 ... 55 °C.
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Type 10/100 Mbit/s
1xRJ-45
Interfaces
COM Total
2
RS-232/422/485
2
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n
Quantity of Wi-Fi
1
Supported Protocols
Managment Protocols
SMTP, SNMPv1/v2c/v3, HTTP, Telnet, UDP, DNS, DHCP, SNTP, TCP, ICMP
Security Protocols
HTTPS, SSH
LED / Controls
LED
Level signal LED, 10/100M LED, WLAN LED, READY LED, COM-ports LED
Setup of Operation Mode
Telnet, Console Port, Web-interface
Controls
1xReset
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
0..55 °C
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
77 mm
Depth
26 mm
Height
111 mm
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11
Safety
UL 60950-1, EN 60950-1
Dimensions
Gross Weight
1 kg
