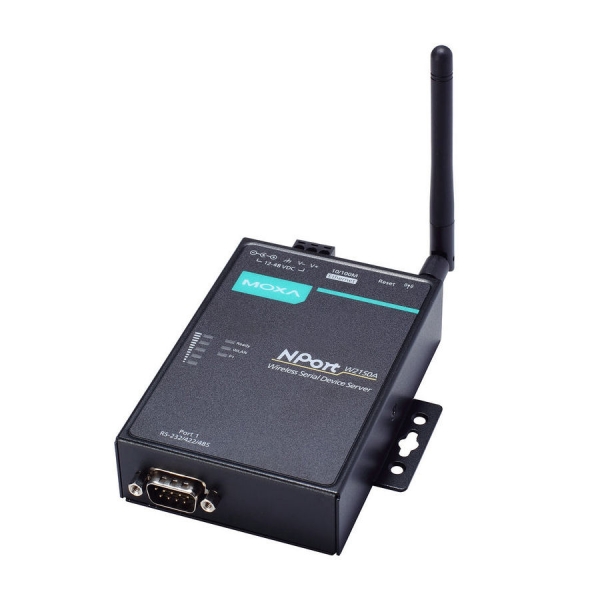

NPort W2150A-T-EU
MOXA
SKU: 05984300
1-port RS-232/422/485 wireless device server with 802.11a/b/g/n WLAN (includes US, Euro, Japan band), -40 to 75C operating temperature
Price on request
Available
Available
Serial interface server for connection of auxiliary equipment with a serial interface to public networks with the speed of up to 921600 bit/s. The fanless metal housing of the programmable device server features 1 Ethernet port and 1 RS-232/422/485 port. The server is available in wall and DIN-rail mounting configurations. It can work with key protocols: SNTP, SMTP, SNMPv1/v2c/v3, HTTP, HTTPS, SSH, Telnet, ICMP, TCP, UDP, DHCP, DNS. It can be configured using Telnet, a console port, or a Web-interface. The device is compatible with major operating systems. It is capable of functioning within a range of temperature of -40 ...75°C.
Serial interface server for connection of auxiliary equipment with a serial interface to public networks with the speed of up to 921600 bit/s. The fanless metal housing of the programmable device server features 1 Ethernet port and 1 RS-232/422/485 port. The server is available in wall and DIN-rail mounting configurations. It can work with key protocols: SNTP, SMTP, SNMPv1/v2c/v3, HTTP, HTTPS, SSH, Telnet, ICMP, TCP, UDP, DHCP, DNS. It can be configured using Telnet, a console port, or a Web-interface. The device is compatible with major operating systems. It is capable of functioning within a range of temperature of -40 ...75°C.
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Type 10/100 Mbit/s
1xRJ-45
Interfaces
COM Total
1
RS-232/422/485
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n
Quantity of Wi-Fi
1
Supported Protocols
Managment Protocols
SMTP, SNMPv1/v2c/v3, HTTP, Telnet, UDP, DNS, DHCP, SNTP, TCP, ICMP
Security Protocols
HTTPS, SSH
LED / Controls
LED
Level signal LED, 10/100M LED, WLAN LED, READY LED, COM-ports LED
Setup of Operation Mode
Telnet, Console Port, Web-interface
Controls
1xReset
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-40..75 °C
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
77 mm
Depth
26 mm
Height
111 mm
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11
Safety
UL 60950-1, EN 60950-1
Dimensions
Gross Weight
1 kg
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Type 10/100 Mbit/s
1xRJ-45
Interfaces
COM Total
1
RS-232/422/485
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n
Quantity of Wi-Fi
1
Supported Protocols
Managment Protocols
SMTP, SNMPv1/v2c/v3, HTTP, Telnet, UDP, DNS, DHCP, SNTP, TCP, ICMP
Security Protocols
HTTPS, SSH
LED / Controls
LED
Level signal LED, 10/100M LED, WLAN LED, READY LED, COM-ports LED
Setup of Operation Mode
Telnet, Console Port, Web-interface
Controls
1xReset
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-40..75 °C
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
77 mm
Depth
26 mm
Height
111 mm
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11
Safety
UL 60950-1, EN 60950-1
Dimensions
Gross Weight
1 kg
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Type 10/100 Mbit/s
1xRJ-45
Interfaces
COM Total
1
RS-232/422/485
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n
Quantity of Wi-Fi
1
Supported Protocols
Managment Protocols
SMTP, SNMPv1/v2c/v3, HTTP, Telnet, UDP, DNS, DHCP, SNTP, TCP, ICMP
Security Protocols
HTTPS, SSH
LED / Controls
LED
Level signal LED, 10/100M LED, WLAN LED, READY LED, COM-ports LED
Setup of Operation Mode
Telnet, Console Port, Web-interface
Controls
1xReset
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-40..75 °C
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
77 mm
Depth
26 mm
Height
111 mm
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11
Safety
UL 60950-1, EN 60950-1
Dimensions
Gross Weight
1 kg
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Type 10/100 Mbit/s
1xRJ-45
Interfaces
COM Total
1
RS-232/422/485
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n
Quantity of Wi-Fi
1
Supported Protocols
Managment Protocols
SMTP, SNMPv1/v2c/v3, HTTP, Telnet, UDP, DNS, DHCP, SNTP, TCP, ICMP
Security Protocols
HTTPS, SSH
LED / Controls
LED
Level signal LED, 10/100M LED, WLAN LED, READY LED, COM-ports LED
Setup of Operation Mode
Telnet, Console Port, Web-interface
Controls
1xReset
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-40..75 °C
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
77 mm
Depth
26 mm
Height
111 mm
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11
Safety
UL 60950-1, EN 60950-1
Dimensions
Gross Weight
1 kg
