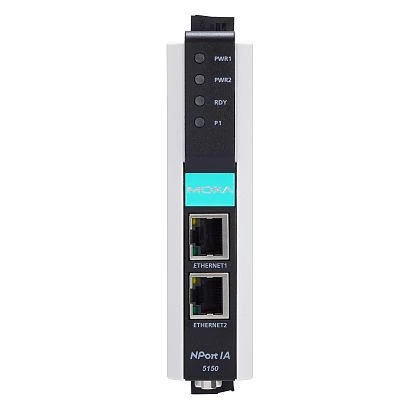

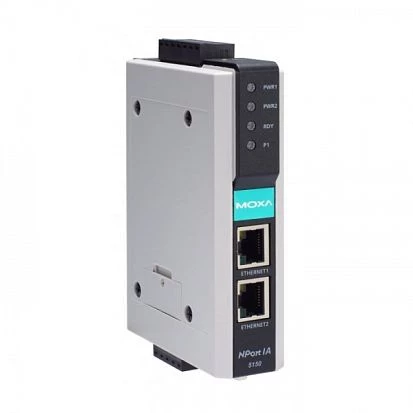

NPort IA-5150I-T-IEX
MOXA
SKU: 06320800
1-Port RS-232/422/485 Serial Device Server, 2x10/100 Base-T(X) (RJ45, Single IP), with 2KV Isolation Protection, IECEx, Wide Temp. 0..55 C
End-of-life product
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Type 10/100 Mbit/s
2xRJ-45
Interfaces
COM Total
1
RS-232/422/485
1
Isolation of COM Ports
2 kV (RS-232/422/485)
Supported Protocols
Managment Protocols
SMTP, HTTP, Telnet, UDP, DNS, DHCP, SNTP, BootP, TCP, SNMP V1, Rtelnet, ICMP
LED / Controls
LED
READY LED, PWR1, PWR2, COM-ports LED
Setup of Operation Mode
Telnet, Via COM-port, Web-interface
Controls
1xReset
System Power Input
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-40..75 °C
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
29 mm
Depth
89.2 mm
Height
118.5 mm
Standards and Certifications
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11
Explosion safety
IECEx
Freefall
IEC 60068-2-32
Marine grade
DNV
Oil And Gas
Class I Div.2 Groups A, B, C, D, ATEX Zone 2 Ex nC IIC
Safety
UL 60950-1, UL 508, EN 60950-1
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Gross Weight
0.36 kg
