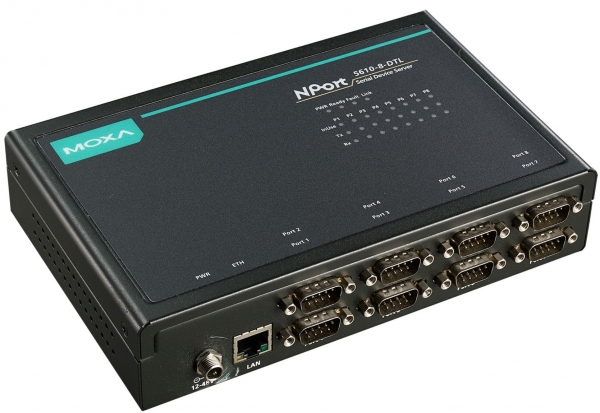

NPort 5610-8-DTL
MOXA
SKU: 66222600
desktop device server with DB9 male connectors, 2x10/100Base-TX, 8xRS-232, 0..60 C operating temperature
End-of-life product
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Type 10/100 Mbit/s
1xRJ-45
Interfaces
COM Total
8
RS-232
8
Supported Protocols
Managment Protocols
SMTP, HTTP, Telnet, UDP, DNS, DHCP, SNTP, BootP, ARP, TCP, SNMP V1, Rtelnet, RFC2217, ICMP
LED / Controls
LED
Power LED, FAULT LED, 10/100M LED, READY LED, COM-ports LED
Setup of Operation Mode
Telnet, Console Port, Buttons for Setting up and Displaying Status, Web-interface
Controls
On/Off, 1xReset, KeyPad
Connectors
Connectors
Console Port RS-232 (RJ-45)
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
0..60 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
197 mm
Depth
125 mm
Height
44 mm
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
EN 55024
Safety
UL 60950-1, EN 60950-1
Dimensions
Net Weight
1.54 kg
Gross Weight
1.54 kg
