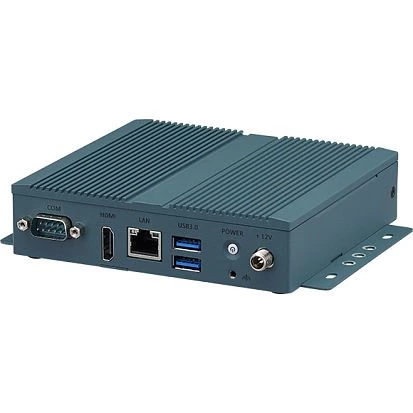

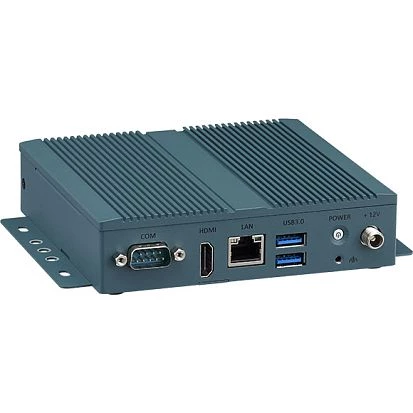

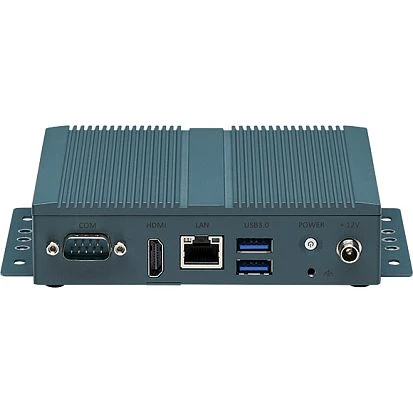

Neu-X60
NEXCOM
SKU: 57930900
Fanless Edge Computing System, Intel Alder Lake N50 3.4GHz CPU, Up to 16GB (4GB Inst.) DDR4 RAM, 1xHDMI, 1x2.5GbE LAN, 1xRS232/422/485, 2xUSB 3.2, 1xFull-Size MiniPCIe, 1xM.2 2242 M-Key (64GB SSD Inst.), 12VDC-in w/ Power Adapter 50W
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel N50
Socket
FCBGA1264
Max CPU frequency
3.4 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Ethernet
Total Ethernet
1
2,5 Gbit/s
1
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
USB v3.x
2
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
SATA
1st Storage Capacity
64 GB
Extension Slots
Total
2
M.2
1
M.2 Form Factor
2242 M
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1, Nano SIM
Antenna characteristics
Cellular interfaces
4G (Optional)
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off
Connectors
Connectors
DB9, HDMI, RJ45 Ethernet, 2xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
50 W
Software
Operating System Compatibility
Windows 10, Linux kernel 4.x, Windows 11
Dimensions and weight
Width
156 mm
Height
31 mm
Depth
119.6 mm
Operating Conditions
Operating Temperature
0..40 °C
Humidity
10-95%
Vibration
Random: 2Grms @ 5~500 Hz, IEC60068-2-64 - Sinusoidal: 2G @ 5~500 Hz, IEC60068-2-6
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
1.15 kg
Gross Weight
1.45 kg
