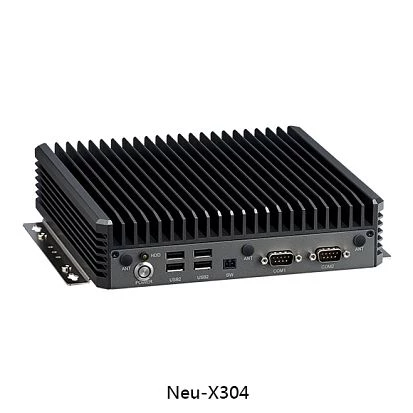

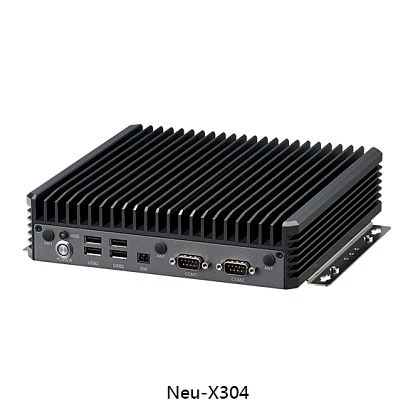

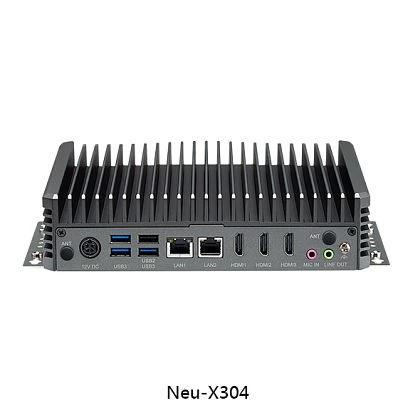

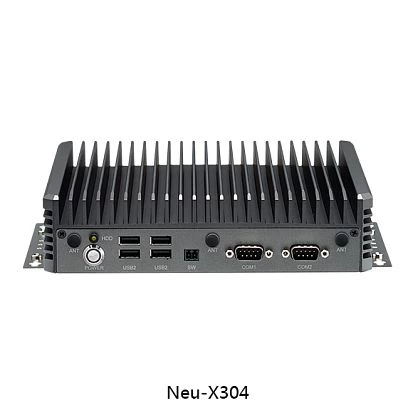

Neu-X304-H

Neu-X304-H

NEXCOM
SKU: 11214000
Fanless Edge Embedded System, Intel 12/13th Gen Core i3/i5/i7/i9 CPU, H610E Chipset, Up to 64GB DDR5 RAM, 3xHDMI/LVDS, 1xGbE LAN, 1x2.5GbE LAN, 2xCOM, 2xCOM headers, 3xUSB 3.2 , 5xUSB 2.0, 3xM.2, 1x8-bit GPIO, Audio, TPM 2.0, 12VDC-in, -5..45C
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall
Type
Fanless
CPU
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel H610E
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Intel UHD Graphics
Interfaces
LVDS, 3xHDMI
Ethernet
Controller Type
Intel i219-LM, Intel i226V
Total Ethernet
2
10/100/1000 Mbit/s
1
2,5 Gbit/s
1
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
8
USB 2.0
5
USB v3.x
3
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Audio
Audio Controller
Realtek ALC888S
Drive interfaces
M.2
1
Extension Slots
Total
2
M.2
2
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
2xRJ45, 8xUSB, Audio (in/out/Mic), 3xHDMI
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10, Windows 11
Dimensions and weight
Width
210 mm
Height
210 mm
Depth
50 mm
Operating Conditions
Operating Temperature
-5..45 °C
Humidity
0-95%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
2.4 kg
Gross Weight
2.9 kg
