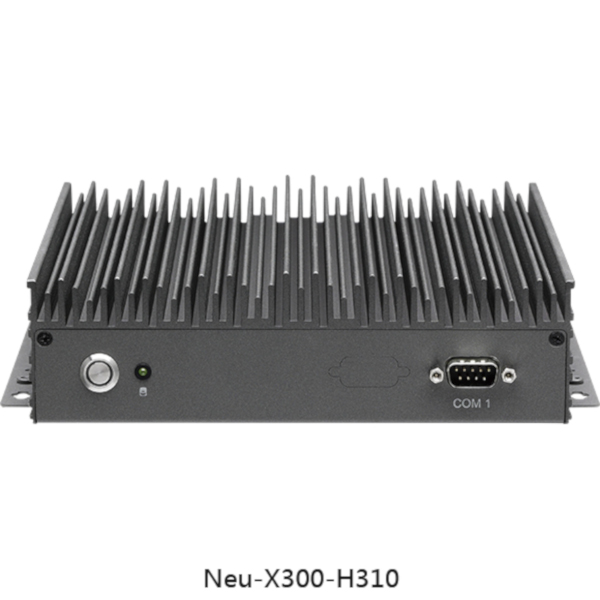

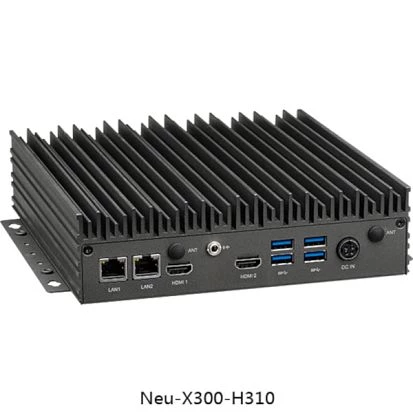

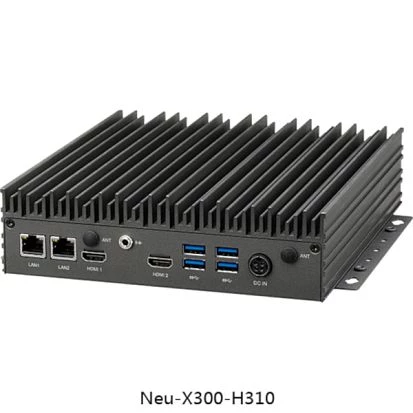

Neu-X300-H310
NEXCOM
SKU: 56983800
Fanless Edge Embedded System, Intel 8th Gen Core i3/i5/i7 CPU, Up to 32GB DDR4 RAM, H310 Chipset, 2xHDMI, 2xGbE LAN, 1xCOM, 4xUSB 3.0, 1xM.2 2280 Key-M (SATA), 1xM.2 2230 Key-E, Audio, 12VDC-in with 96W Power Adapter
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Type
Fanless
CPU
СPU Generation/Family
Coffee Lake
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel H310
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
2xHDMI
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
4
USB v3.x
4
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Drive interfaces
M.2
1
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2280 M, 2230 E
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off
Connectors
Connectors
DB9, 2xHDMI, 2xRJ45, 4xUSB, Line Out, 4-pin DC input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
96 W
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10
Dimensions and weight
Width
190 mm
Height
54.4 mm
Depth
200 mm
Operating Conditions
Operating Temperature
-5..45 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class A
EMI
EN 55032, EN 55035
Dimensions
Net Weight
2.2 kg
Gross Weight
3 kg
Construction
Construction Chassis
Metal Chassis
Type
Fanless
CPU
