Neu-X102-N50
Fanless Edge PC with Intel CPU, up to 16 GB DDR4 RAM, M.2 SSD, 2× LAN, 4× USB, 2× HDMI, COM
The Neu-X102-N50 and Neu-X102-N97 offer two efficient fanless edge computing systems distinguished by a slim, compact, rugged design and versatile interfaces including dual LAN, serial COM, USB 3.2, and multiple display outputs, alongside excellent scalability.
The key difference is the onboard CPU: the Neu-X102-N50 uses an energy-efficient dual-core Intel N50 running up to 3.40 GHz at 6 W TDP, while the Neu-X102-N97 features a quad-core Intel N97 up to 3.60 GHz with twice the power draw. Both support up to 16 GB DDR4 SO-DIMM RAM and a SATA or PCIe SSD via an M.2 slot.

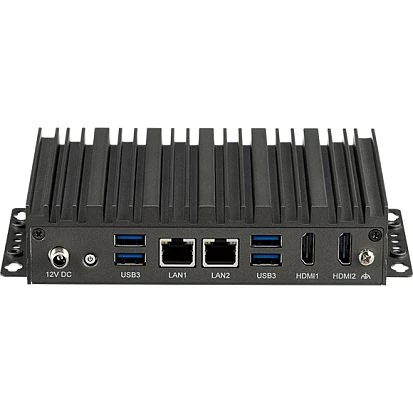

Both models deliver redundant, high-bandwidth networking via two 2.5 GbE RJ45 LAN ports and extensive I/O: four USB 3.2 ports, serial COM (RS232/422/485), and two HDMI outputs. Internal headers allow expansion for an 8-bit GPIO, three more USB ports, serial COM, and a Mini PCIe slot with nano-SIM support.
Built for harsh industrial environments, both operate from –5 °C to +50 °C and are certified per IEC 60068-2-64 against repeated shocks up to 50 G and sustained vibrations (500 Hz, 2 G). Compatible with Windows and various Linux distributions, their high efficiency, compact rugged design, and long-term reliability make them ideal for small semi-autonomous systems like IoT gateways, kiosk PCs, or customer-facing infotainment.
