NDiS-B362-Series
NEXCOM
SKU: 80091000

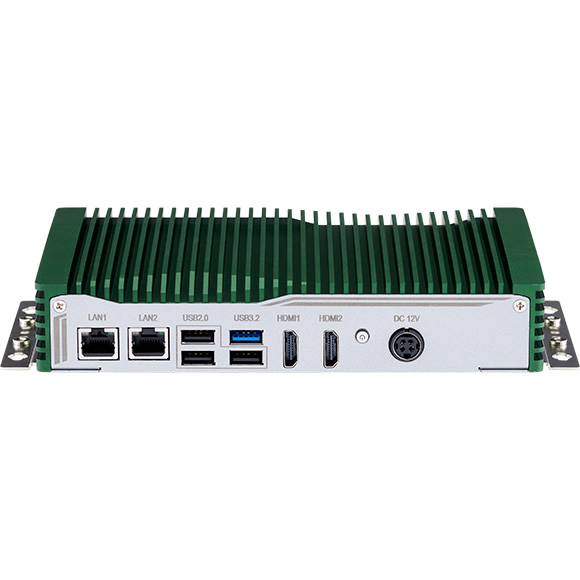

Fanless Visual Edge System, Intel Core Ultra 7/5 CPU, Up to 96GB DDR5 RAM, 2xHDMI, 1x2.5GbE LAN, 1xGbE LAN, 1xUSB 3.2, 3xUSB 2.0, 2xCOM, Internal: (4xUSB 2.0, 4xCOM, 8-bit GPIO), 1xM.2 Key-M, 1xM.2 Key-B, 1xM.2 Key-E, Audio, 12VDC-in with 96W PSU
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Meteor Lake
Socket
FCBGA2049
CPU Support Type
Core Ultra 5, Core Ultra 7
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
No
Maximum Memory
96 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
2xHDMI
Ethernet
Controller Type
Intel i219, Intel i226
Total Ethernet
2
10/100/1000 Mbit/s
1
2,5 Gbit/s
1
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB 2.0
3
USB v3.x
1
Drive interfaces
M.2
1
Extension Slots
Total
3
M.2
3
M.2 Form Factor
2280 M, 2230 E, 3052 B, 3042 B, 2242 B
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Internal Ports
2xCOM, 4xUSB 2.0, GPIO
Connectors
2xDB9, 2xHDMI, 2xRJ45 Ethernet, 4xUSB, Line Out, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
96 W
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
200 mm
Height
37 mm
Depth
140 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC Class A
Safety
EN 62368-1 (LVD)
Dimensions
Net Weight
1.26 kg
Gross Weight
2.54 kg
