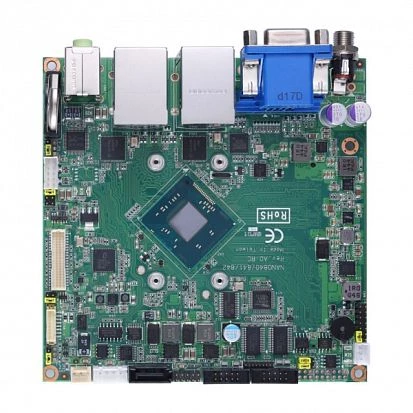

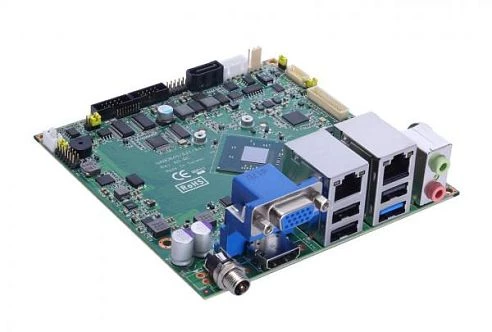

NANO840VHGGA-E3827
AXIOMTEK
SKU: 06975800
Embedded Motherboard Nano-ITX Intel Atom processor E3827 1.75GHz, SoC Integrated, up to 8GB DDR3L SO-DIMM, 1xVGA/HDMI/LVDS, 2x1Gb LAN, 1xRS-232, 1xRS-232/422/485, 5xUSB 2.0, 1xUSB 3.0, 1xSATAII, 8xDI/DO, Audio Out, 2xMiniPCIe (1xHalf-Size), 12V DC
Price on request
Available on order
Available on order
System Architecture
Form Factor
Nano-ITX
Construction
Type
Fanless
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Atom E3827
Socket
CPU onboard
Max CPU frequency
1.75 GHz
Chipset
Chipset
Intel Bay Trail-I SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Graphic
Graphic Controller
Integrated in CPU
Interfaces
LVDS, HDMI, VGA
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
6
USB 2.0
5
USB v3.x
1
Audio
Audio Controller
Realtek ALC662
Drive interfaces
mSATA
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
SATA 2, 10-pin RS-232, 10-pin USB 2.0, 10-pin GPIO, 10-pin RS-232/422/485, 3-pin SMBus, 40-pin LVDS
Connectors
DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input
Software
Operating System Compatibility
Windows 7, Windows 8.1
Dimensions and weight
Width
120 mm
Length
120 mm
Operating Conditions
Operating Temperature
-40..80 °C
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
0.2 kg
Gross Weight
1.1 kg
