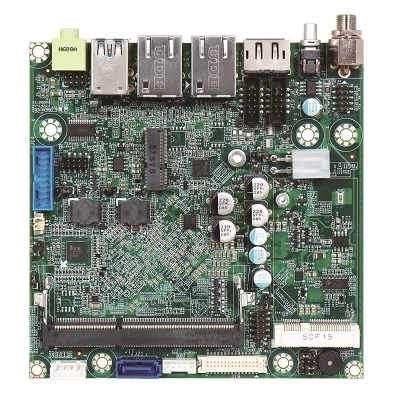

NANO-6062-E3930
Portwell
SKU: 07891300
Nano-ITX CPU board with Intel Atom Dual Core E3930 1.g GHz, DDR3L u to 8 GB, SATA, mSATA, 1xMicroSD, 1xM.2, 2xLAN, 1xCOM, 4xUSB, GPIO, LVDS/CRT/DP, -40..85 C
Price on request
Available
Available
System Architecture
Form Factor
Nano-ITX
Construction
Type
Fanless
CPU
Processor Installed
Intel Atom E3930
Max CPU frequency
1.8 GHz
Number of CPU
1
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Intel Gen9 Graphic engine
Interfaces
DisplayPort, LVDS
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
4
USB v3.x
4
Audio
Audio Controller
Realtek ALC892
Drive interfaces
mSATA
1
MicroSD
1
Extension Slots
Total
2
M.2
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
8-pin GPIO, 2xUSB 3.0
Connectors
RJ45, 2xRJ45 Ethernet, 2xUSB
Dimensions and weight
Width
120 mm
Length
120 mm
Operating Conditions
Operating Temperature
-40..85 °C
Dimensions
Net Weight
0.7 kg
Gross Weight
1 kg
