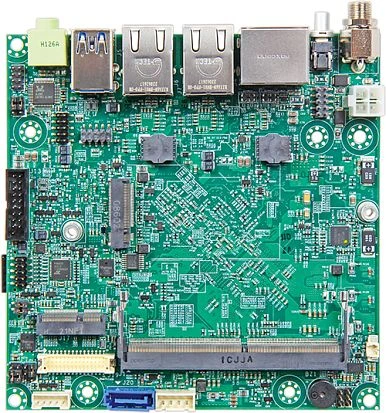

NANO-6064
Portwell
SKU: 10286800
Nano-ITX CPU board with support Intel Atom x7000E, DDR4, HDMI, DP, LVDS, 2x2.5GbE LAN, 1xCOMN, 4xUSB 3.2, M.2 E-key, M.2 B-key, MicroSD
Price on request
Available
Available
System Architecture
Form Factor
Nano-ITX
Construction
Type
Fanless
CPU
СPU Generation/Family
Alder Lake
CPU Support Type
Core i3, Atom
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
Maximum Memory
16 GB
Assembly
Removable
Graphic
Interfaces
DisplayPort, LVDS, HDMI
Ethernet
Controller Type
Intel i225LM
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
4
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek ALC897
Drive interfaces
SATA 3
1
M.2
1
Extension Slots
M.2
1
Connectors
Connectors
HDMI, 2xRJ45, 2xUSB, Audio Out, DC Input, Display Port
Dimensions and weight
Width
120 mm
Length
120 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.7 kg
Gross Weight
1 kg
