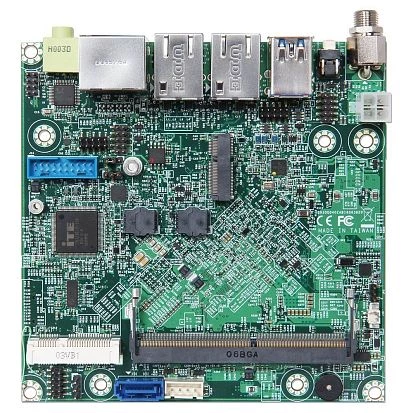

NANO-6063-x6425E
Portwell
SKU: 09837500
Nano-ITX CPU board with Intel Atom x6425E, DDR4, VGA/HDMI/DP, GbE LAN, 1xCOM, 4xUSB 3.2, SATA III, mSATA, M.2 Type E, MiniPCIe, micro SD, 12VDC-in
Price on request
Available
Available
System Architecture
Form Factor
Nano-ITX
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Intel Atom x6425E
Max CPU frequency
3 GHz
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI, VGA
Ethernet
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
4
USB v3.x
4
Audio
Audio Controller
Realtek ALC888
Drive interfaces
SATA 3
1
mSATA
1
MicroSD
1
Extension Slots
M.2
1
Mini-PCIe/Mini Card
1
Connectors
Connectors
HDMI, 2xRJ45, 2xUSB, Audio Out, DC Input, Display Port
Dimensions and weight
Width
120 mm
Length
120 mm
Operating Conditions
Operating Temperature
-40..85 °C
Humidity
5-95%
Dimensions
Net Weight
0.7 kg
Gross Weight
1 kg
