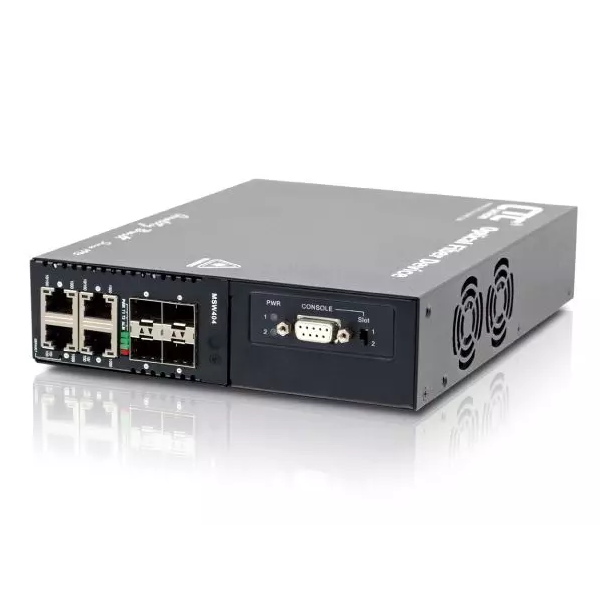

MSW-404
CTC Union
SKU: 57882000
Carrier Ethernet Switch, 4-Port 10/100/1000Base-T, 4-Port 1000Base-X SFP, 1xCOM, 18..72 VDC, 0...50C Operating Temperature
Price on request
Available
Available
Ethernet
10/100/1000 Mbit/s
4
SFP 100/1000 Mbit/s Ports
4
Switch Properties
MAC Table Size
16000
Packet Buffer Size
8000 kBit
Jumbo Frame Size
10 kB
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, HTTP, Telnet, VLAN, TCP/IP, QoS, DHCP, NTP, GVRP, TFTP, CoS, Private MIB, IGMP Snooping v1/v2/v3
Security Protocols
SSH, RADIUS, TACACS+
IEEE Standard
IEEE 802.1ad for Q-in-Q tagging, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3ah OAM for Link-Fault Management
System Power Input
Input Voltage DC
18..72 V
Input Voltage AC
100..240 V
Dimensions and weight
Width
219.4 mm
Depth
167.4 mm
Height
44.5 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
5 kg
Gross Weight
6 kg
