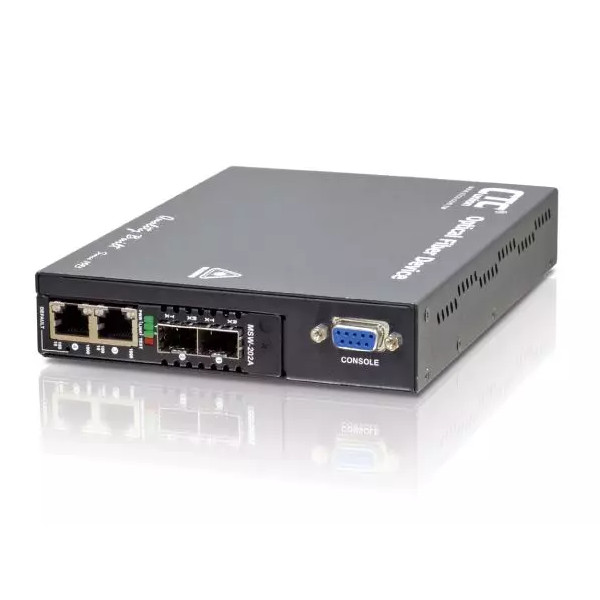

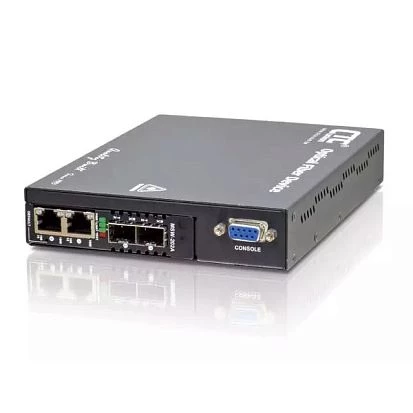

MSW-202A
CTC Union
SKU: 57882200
Carrier Ethernet Switch, 2-Port 10/100/1000Base-T, 2-Port 1000Base-X SFP, 1xCOM, 18..72 VDC, 0...50C Operating Temperature
Price on request
Available
Available
Ethernet
10/100/1000 Mbit/s
2
SFP 100/1000 Mbit/s Ports
2
Switch Properties
MAC Table Size
8000
Packet Buffer Size
4000 kBit
Jumbo Frame Size
9.6 kB
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, HTTP, Telnet, VLAN, TCP/IP, QoS, DHCP, NTP, GVRP, RMON, TFTP, LACP, CoS, Private MIB, IGMP Snooping v1/v2/v3
Security Protocols
SSH, RADIUS, TACACS+
IEEE Standard
IEEE 802.1ad for Q-in-Q tagging, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X), IEEE 802.3ah OAM for Link-Fault Management
System Power Input
Input Voltage DC
18..75 V
Input Voltage AC
100..240 V
Dimensions and weight
Width
135 mm
Depth
180 mm
Height
30 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
5 kg
Gross Weight
6 kg
Ethernet
10/100/1000 Mbit/s
2
SFP 100/1000 Mbit/s Ports
2
Switch Properties
MAC Table Size
8000
Packet Buffer Size
4000 kBit
Jumbo Frame Size
9.6 kB
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, HTTP, Telnet, VLAN, TCP/IP, QoS, DHCP, NTP, GVRP, RMON, TFTP, LACP, CoS, Private MIB, IGMP Snooping v1/v2/v3
Security Protocols
SSH, RADIUS, TACACS+
IEEE Standard
IEEE 802.1ad for Q-in-Q tagging, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X), IEEE 802.3ah OAM for Link-Fault Management
System Power Input
Input Voltage DC
18..75 V
Input Voltage AC
100..240 V
Dimensions and weight
Width
135 mm
Depth
180 mm
Height
30 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
5 kg
Gross Weight
6 kg
Ethernet
10/100/1000 Mbit/s
2
SFP 100/1000 Mbit/s Ports
2
Switch Properties
MAC Table Size
8000
Packet Buffer Size
4000 kBit
Jumbo Frame Size
9.6 kB
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, HTTP, Telnet, VLAN, TCP/IP, QoS, DHCP, NTP, GVRP, RMON, TFTP, LACP, CoS, Private MIB, IGMP Snooping v1/v2/v3
Security Protocols
SSH, RADIUS, TACACS+
IEEE Standard
IEEE 802.1ad for Q-in-Q tagging, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X), IEEE 802.3ah OAM for Link-Fault Management
System Power Input
Input Voltage DC
18..75 V
Input Voltage AC
100..240 V
Dimensions and weight
Width
135 mm
Depth
180 mm
Height
30 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
5 kg
Gross Weight
6 kg
Ethernet
10/100/1000 Mbit/s
2
SFP 100/1000 Mbit/s Ports
2
Switch Properties
MAC Table Size
8000
Packet Buffer Size
4000 kBit
Jumbo Frame Size
9.6 kB
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, HTTP, Telnet, VLAN, TCP/IP, QoS, DHCP, NTP, GVRP, RMON, TFTP, LACP, CoS, Private MIB, IGMP Snooping v1/v2/v3
Security Protocols
SSH, RADIUS, TACACS+
IEEE Standard
IEEE 802.1ad for Q-in-Q tagging, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X), IEEE 802.3ah OAM for Link-Fault Management
System Power Input
Input Voltage DC
18..75 V
Input Voltage AC
100..240 V
Dimensions and weight
Width
135 mm
Depth
180 mm
Height
30 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
5 kg
Gross Weight
6 kg
