MS208

MS208

WoMaster
SKU: 57651400

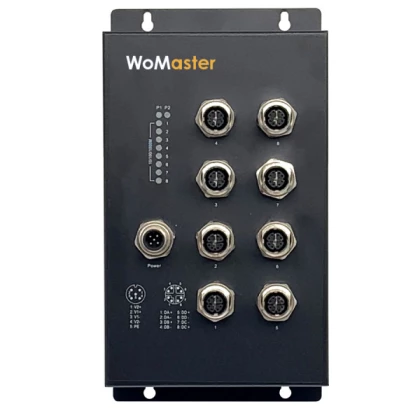

Slim size IP30 M12 Switch for Rolling Stock and Vehicle Applications, 10/100/1000Base-T M12, 24VDC, -40..70 C
Price on request
Available
Available

Ethernet
10/100/1000 Mbit/s
1
Switch Properties
MAC Table Size
4000
Packet Buffer Size
2 kBit
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X)
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
110 mm
Depth
42 mm
Height
202 mm
Dimensions
Net Weight
0.8 kg
Gross Weight
1.07 kg
