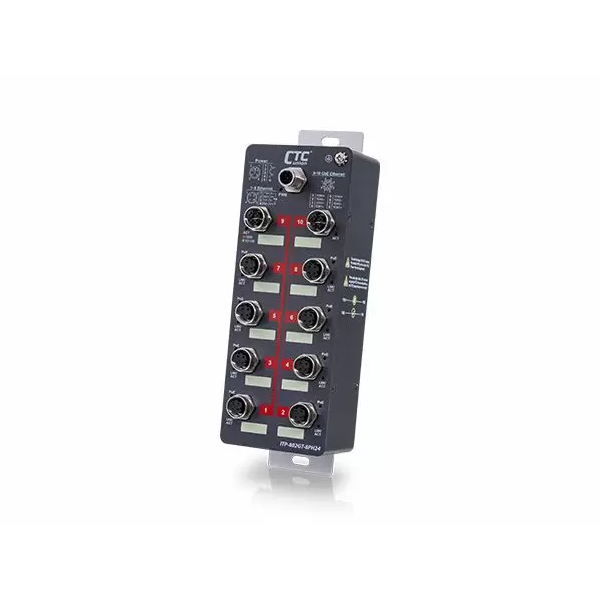

ITP-802GT-8PH24
CTC Union
SKU: 80073000
Managed Ethernet PoE Switch, IP40, 8x10/100Base-TX M12 with PoE, 2x10/100/1000Base-TX M12, EN50155 Certification, 20..57VDC-In, -10..60C Operating Temperature
Price on request
Available
Available
Ethernet
Total Ethernet
10
10/100 Mbit/s
8
Type 10/100 Mbit/s
M12
10/100/1000 Mbit/s
2
Type 10/100/1000 Mbit/s
M12
Switch Properties
MAC Table Size
4000
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
20..57 V
Construction
Mounting Configuration
Wall
Protection Level of Chassis
IP40
Dimensions and weight
Width
63.3 mm
Depth
71.5 mm
Height
219 mm
Operating Conditions
Operating Temperature
-10..60 °C
Humidity
5-95%
MTBF
531231 h
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN 61000-6-2, EN 61000-6-4, EN 55032, EN 55035
Rolling Stock
EN 50121-4, EN 50155
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 61373
Dimensions
Net Weight
0.8 kg
Gross Weight
1.5 kg
