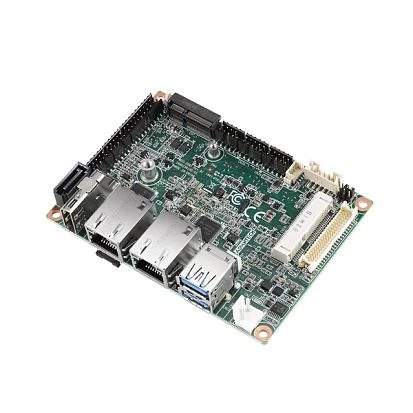

MIO-2361N-S2A2

MIO-2361N-S2A2

Advantech
SKU: 09581600
Intel Pentium N4200 1.1GHz Pico-ITX SBC, 4GB LPDDR4, 32GB eMMC Flash, LVDS/HDMI, 2xGbE LAN, 2xRS-232/422/485, 2xUSB 3.0, 2xUSB 2.0, SMBus, M.2, GPIO, Audio
Price on request
Available on order
Available on order
System Architecture
Form Factor
PICO-ITX
Construction
Type
Fanless
CPU
Processor Installed
Intel Pentium N4200
Socket
CPU onboard
Max CPU frequency
2.5 GHz
Number of CPU
1
Chipset
Chipset
Intel Atom SoC
Memory
Form-factor
DDR4
Socket Type
Soldered
Default on Board Memory
4 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in Chipset
Interfaces
LVDS, HDMI
Ethernet
Controller Type
Intel i210-IT, Intel i210-AT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB 2.0
2
USB v3.x
2
Audio
Audio Controller
Realtek ALC888
Drive interfaces
mSATA
1
Extension Slots
M.2
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
HDMI, 2xRJ45 Ethernet, 2xUSB
Software
Operating System Compatibility
Linux OS, Vxworks, Windows 10
Dimensions and weight
Width
100 mm
Length
72 mm
Operating Conditions
Operating Temperature
-40..85 °C
Standards and Certifications
Certifications
CE, FCC Class B
Dimensions
Net Weight
0.4 kg
Gross Weight
0.6 kg
