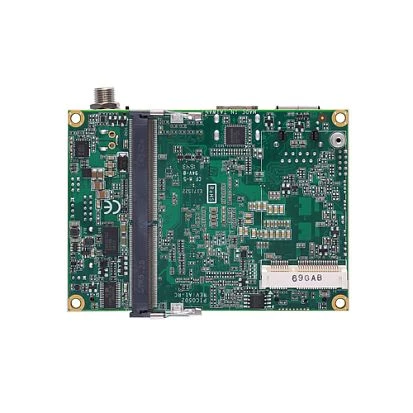

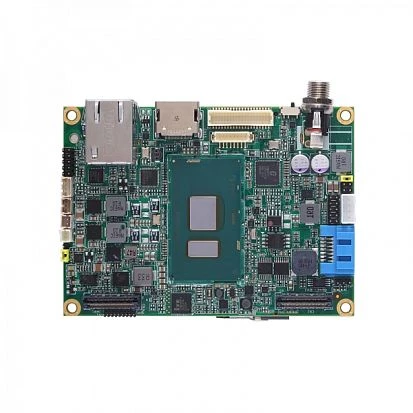

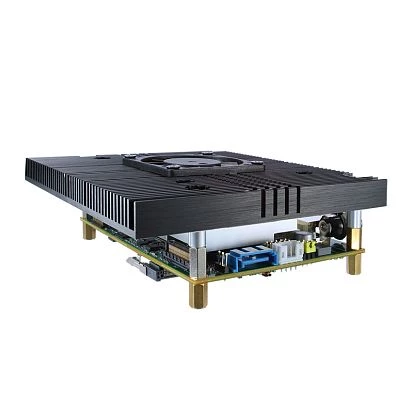

PICO512HG-i7-7600U

PICO512HG-i7-7600U

AXIOMTEK
SKU: 07450800
Pico-ITX Mainboard with 7th Generation Intel Core i7-7600U with DDR4 RAM, HDMI/LVDS, Gigabit Ethernet, 1xUSB 2.0, 1xSATA-600, Audio, +12V DC-in, -20...+70C
Price on request
Available
Available
System Architecture
Form Factor
PICO-ITX
Construction
Type
Fan
CPU
СPU Generation/Family
Skylake
Processor Installed
Intel Core i7-7600U
Max CPU frequency
3.9 GHz
Chipset
Chipset
Intel Skylake SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
Maximum Memory
16 GB
Assembly
Removable
Graphic
Interfaces
HDMI
Drive interfaces
mSATA
1
Extension Slots
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
LVDS, HDMI, RJ45 Ethernet, External SATA
Dimensions and weight
Width
100 mm
Length
172 mm
Operating Conditions
Operating Temperature
-20..70 °C
Standards and Certifications
Certifications
CE
Dimensions
Gross Weight
0.5 kg
