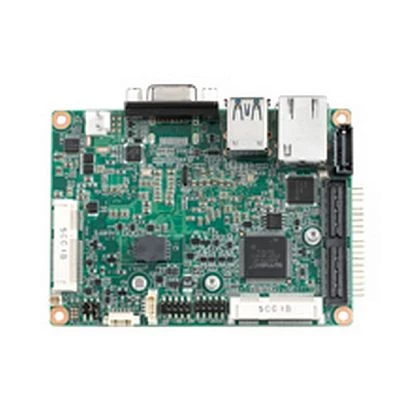

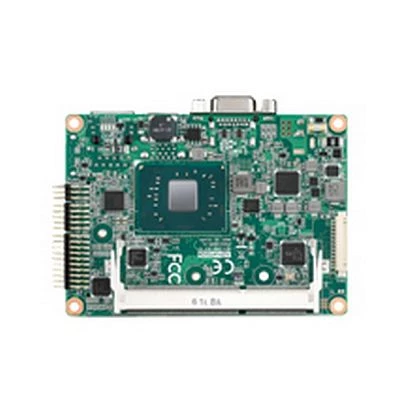

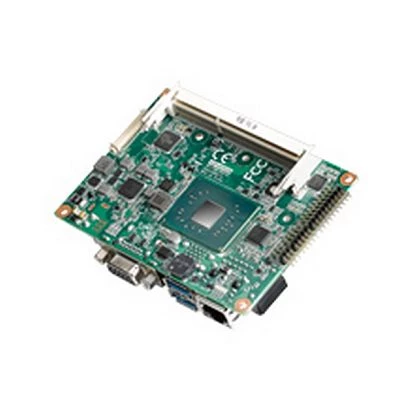

MIO-2360N-S1A1E
Advantech
SKU: 07408300
Intel Atom SoC Intel Celeron N3350 Pico-ITX SBC, DDR3L, 24-bit LVDS, GB LAN, 2xCOM, 2xUSB 3.0, 2xUSB 2.0, mSATA, SATA III, MIOe, MiniPCIe
Price on request
Available on order
Available on order
System Architecture
Form Factor
PICO-ITX
Construction
Type
Fanless
CPU
Processor Installed
Intel Celeron N3350
Socket
CPU onboard
Max CPU frequency
2.4 GHz
Number of CPU
1
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Intel Gen7 graphic engine
Interfaces
LVDS, HDMI, VGA
Ethernet
Controller Type
Intel i210 10/100/1000 Mbps
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB 2.0
2
USB v3.x
2
Audio
Audio Controller
Realtek ALC888
Drive interfaces
mSATA
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors

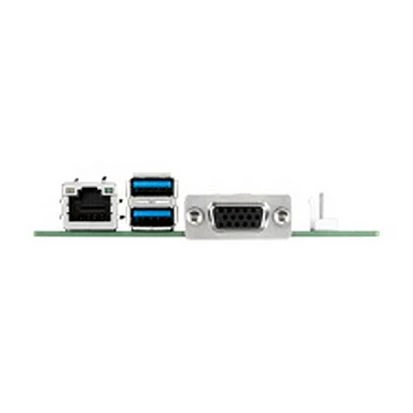

DB15 VGA, RJ45 Ethernet, 2xUSB
Dimensions and weight
Width
100 mm
Length
72 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
0.4 kg
Gross Weight
0.6 kg
